| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

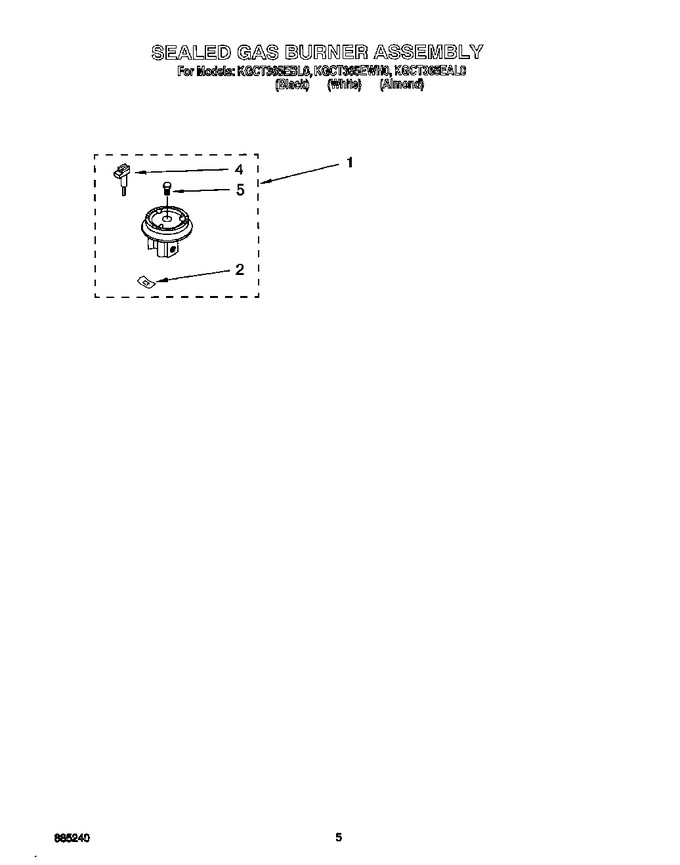

| 1 | 3188798 | Sealed Gas Burner Assembly (large Burner) |
|
- | |||||
| 1 | 3188799 | Sealed Gas Burner Assembly (small Burner) |
|
- | |||||
| 2 | 3185805 | Nut |
|
- | |||||
| 4 | 3185804 | Electrode |
|
$ 27.18 | |||||
| 5 | 3185947 | Orifice, Burner (small Burner) |
|
- | |||||
| 5 | 4167077 | Bracket Tinnerman Nut |
|
- | |||||
| 5 | 3179557 | Screw (2) |
|
- | |||||
| 5 | 3188310 | Hardware, Mounting |
|
- | |||||
| 5 | 4173627 | Conversion Kit Natural Gas To L.p. |
|
- | |||||
| 5 | 3179164 | Tape, Foam |
|
- | |||||
| 5 | 3191088 | Harness, Switch |
|
- | |||||
| 5 | 3187588 | Harness, Ignitor |
|
- | |||||
| 5 | 3191111 | Sides |
|
- | |||||
| 5 | 3191113 | Front & Back |
|
- | |||||
| 5 | 3185948 | Orifice, Burner (large Burner) |
|
- | |||||
| 5 | 3188867 | Cord, Power |
|
$ 168.08 | |||||
| 5 | 3148443 | Ground Screw |
|
- | |||||
| 5 | 4173634 | Bushing |
|
$ 5.83 | |||||
| 5 | 8186533 | Bracket, Mounting (Replaces: 3183401) |
|
$ 79.60 |
