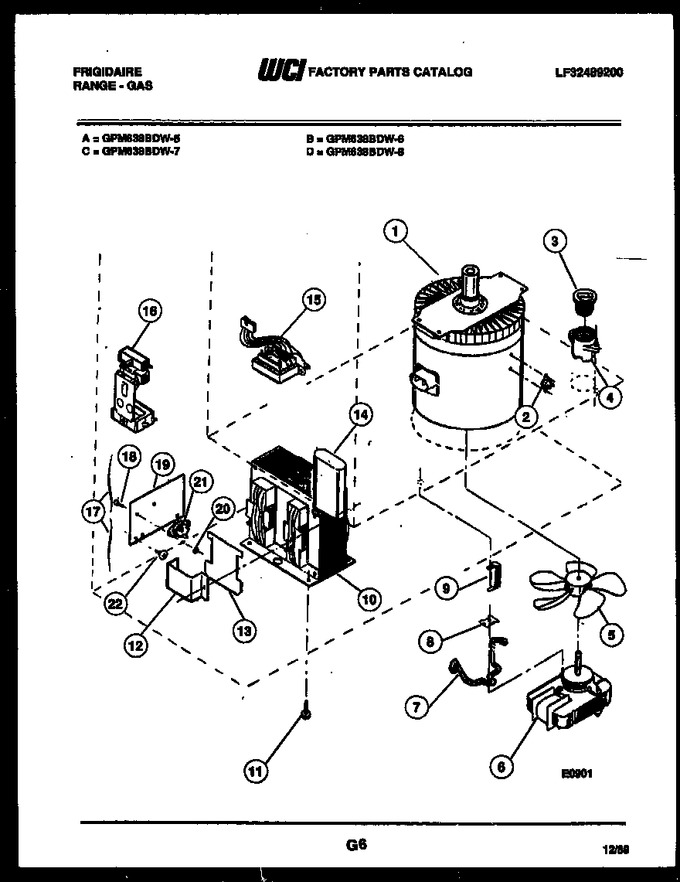

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8008917 | Magnetron |
|
- | |||||
| 2 | 8012862 | Switch-thermo. Cutout (mag.) |
|
- | |||||
| 3 | 8012054 | Fuse (20 Amp) |
|
- | |||||
| 4 | 8012055 | Socket-fuse |
|
- | |||||
| 5 | 8012182 | Fan-blade (magnetron) |
|
- | |||||
| 6 | 8012203 | Motor-fan |
|
- | |||||
| 7 | 8010478 | Rod-fan Motor Support (2) |
|
- | |||||
| 8 | 8012858 | Channel-mtg. Guide (2) |
|
- | |||||
| 9 | 8037625 | Diode-high Voltage |
|
- | |||||
| 10 | 8010486 | Transformer-high Voltage |
|
- | |||||
| 11 | 8008933 | Screw-transformer |
|
- | |||||
| 12 | 8010483 | Retainer-capacitor |
|
- | |||||
| 13 | 8010484 | Shield-capacitor |
|
- | |||||
| 14 | 8037624 | Capacitor-high Voltage |
|
- | |||||
| 15 | 8010486 | Transformer-low Voltage |
|
- | |||||
| 16 | 8010487 | Kit-interlock Switch |
|
- | |||||
| 17 | 8012067 | Triac-heat Sink |
|
- | |||||
| 18 | 8008971 | Screw-triac (2) |
|
- | |||||
| 19 | 8010489 | Plate-heat Sink |
|
- | |||||
| 20 | 8012066 | Nut-hex (2) |
|
- | |||||
| 21 | 8012067 | Triac |
|
- | |||||
| 22 | 8010491 | Screw-triac |
|
- | |||||
| *27956 | 8008918 | Nut-hex Mag. Brkt. (2) |
|
- | |||||
| *27957 | 8010494 | Harness-diode |
|
- | |||||
| *27957 | 603T054P01 | Relay |
|
- | |||||
| *27957 | 8008908 | Spacer-interlock Channel (2) |
|
- | |||||
| *27957 | 3091339 | Harness Main |
|
- | |||||
| *27957 | 8008928 | Screw-diode |
|
- | |||||
| *27957 | 8012115 | Nut-diode (2) |
|
- | |||||
| 16A | 8010488 | Screw-interlock Switch (6) (non-illustrated) |
|
- | |||||
| 16B | 8012068 | Retainer-roller (non-illustrated) |
|
- | |||||
| 1A | 8008918 | Nut-hex 5 Millimeter (non-illustrated) |
|
- | |||||
| 4A | 8010491 | Screw-fuse (non-illustrated) |
|
- | |||||
| 6A | 8010491 | Screw-motor Mtg. (non-illustrated) |
|
- |
