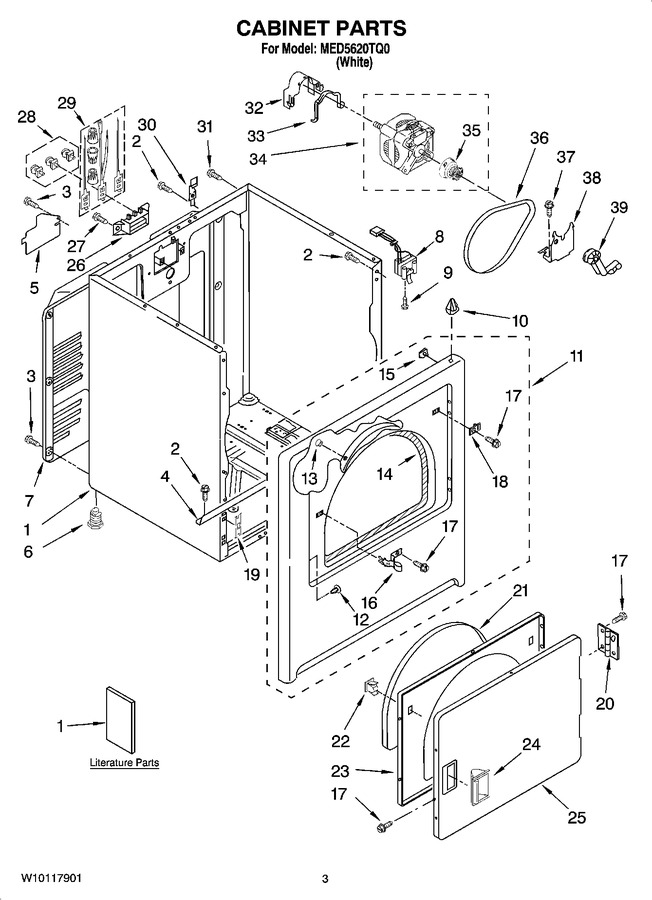

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8533643 | Cabinet (includes Item 4) (Replaces: 8530603) |
|
$ 359.33 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 4 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 539.78 | ||||
| 6 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 6 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 307.17 | |||||
| 8 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 9 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 6.93 | |||||
| 10 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 11 | W10806345 | Panel, Front (Replaces: 3403444) |
|
$ 209.47 | |||||
| 12 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 7.16 | ||||
| 13 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 14 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 70.90 | ||||
| 15 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 16 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 17 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 6.81 | |||||
| 18 | WP3403630 | Plug, Strike (Replaces: 3403630) |
|
$ 6.78 | |||||
| 19 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 20 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 7.12 | ||||
| 21 | W10861521 | Seal-door (Replaces: 3405246) |
|
Immediately | $ 52.82 | ||||
| 22 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
Immediately | $ 5.58 | ||||
| 23 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 178.89 | |||||
| 24 | W11109500 | Handle, Door (Replaces: 8565970) |
|
$ 75.25 | |||||
| 25 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 230.80 | |||||
| 26 | WP3397659 | Block Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 27 | WP308685 | Screw, 10-16x1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 28 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 29 | 279318 | Terminal, Tinned & Brass (3) (includes Item 28) |
|
Immediately | $ 90.89 | ||||
| 30 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 7.04 | |||||
| 31 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 6.98 | |||||
| 32 | WP3404162 | Clamp-motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.04 | ||||
| 33 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 34 | 279827 | Motor, Assembly 60 Hz. (Replaces: 8066206) |
|
Immediately | $ 172.76 | ||||
| 35 | WP8066184 | Pulley-60 Hz. (Replaces: 8066184) |
|
Immediately | $ 45.92 | ||||
| 36 | 341241 | Belt Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 37 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.03 | ||||
| 38 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 39 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 |
