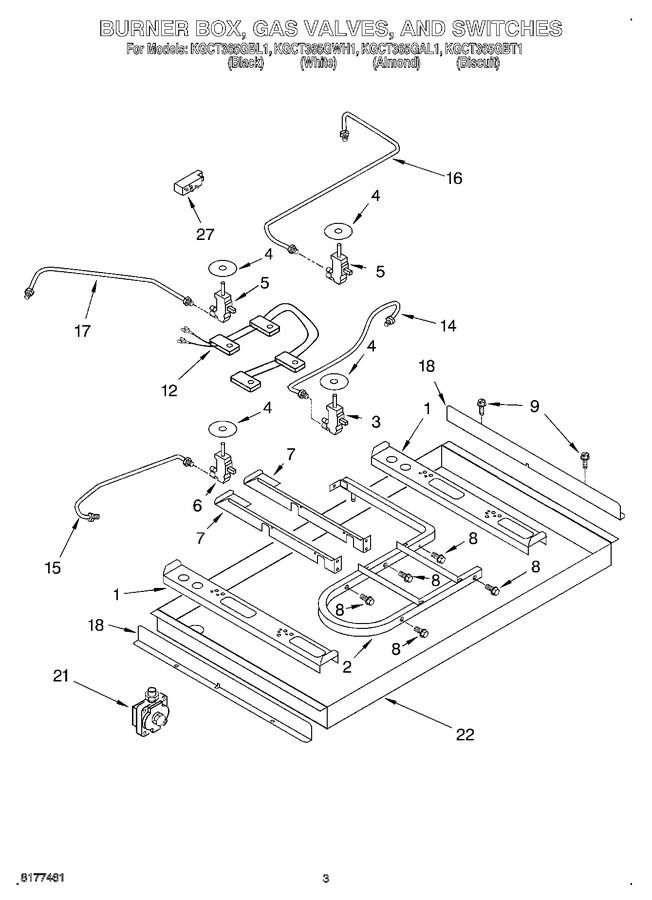

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203756		Rail, Burner   (Replaces: 3191557)		Appelez-nous	-
2	3192491		Bracket, Manifold Outlet		Appelez-nous	-
2	3191316		Pipe, Manifold		Appelez-nous	-
3	3191292		Valve, Gas Burner Burner, (rf)				$ 120.40
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	3191293		Valve, Gas Burner (rr & Lr)				$ 122.26
6	3192157		Valve, Gas Burner (lf)		Appelez-nous	-
7	3192819		Rail, Center		Appelez-nous	-
8	307630		Bolt, Gas Valve		Appelez-nous	-
9	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
12	3191334		Harness & Switches				$ 87.56
14	3191324		Tubing, Gas Burner (rf)				$ 123.70
15	3191326		Tubing, Gas Burner (lf)		Appelez-nous	-
16	3191325		Tubing, Gas Burner (rr)		Appelez-nous	-
17	3191327		Tubing, Gas Burner (lr)		Appelez-nous	-
18	3191462		Shield, Heat (2)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	3192494		Burner Box		Appelez-nous	-
27	WP8053421		Module, Spark   (Replaces: 8053421)			Immediately	$ 166.02
	LIT3191827		Installation Instructions		Appelez-nous	-
	3192230		Harness, Ignitor 28`` (2)		Appelez-nous	-
	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
	LIT3192742		Conversion Instructions		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT3192098		Wiring Diagram		Appelez-nous	-
	LIT3193071		Use & Care Guide		Appelez-nous	-
	3192229		Harness, Ignitor 15`` (2)		Appelez-nous	-
	WP3192741		Conversion Kit Natural Gas To L.p.   (Replaces: 3192741)				$ 41.81
	3188310		Hardware, Mounting		Appelez-nous	-
	3191933		Seal, Foam-cooktop Miscellaneous				$ 29.81
	4167077		Tinnerman Nut		Appelez-nous	-
	8186533		Bracket   (Replaces: 3183401)				$ 79.60
	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
	4173634		Bushing				$ 5.83
