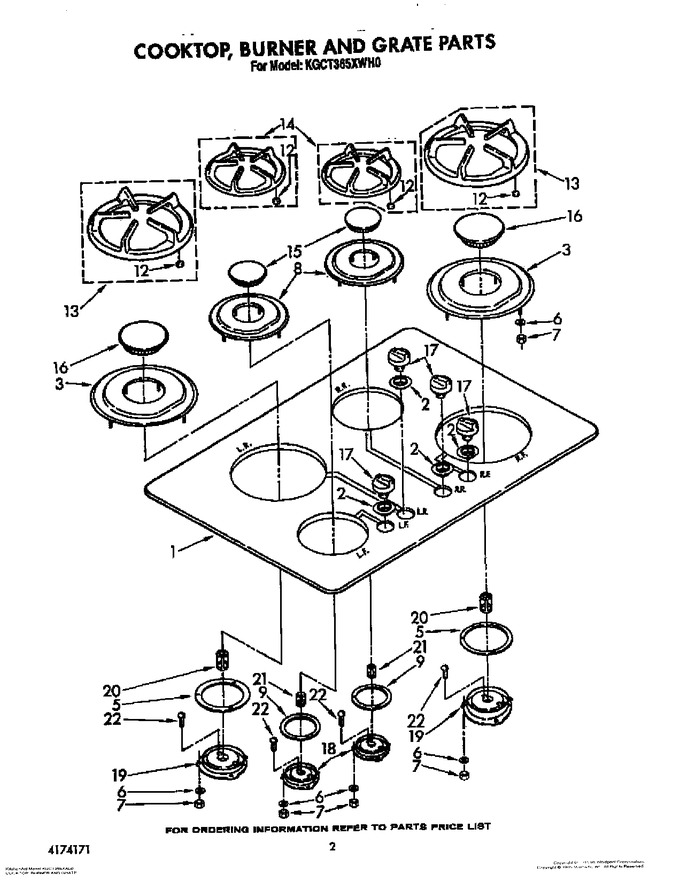

02 - Cooktop, Burner And Grate
03 - Burner Box, Gas Valves, And Switches
04 - Complete Sealed Gas Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3181346 | Cooktop, Glass (almond) |
|
- | |||||
| 1 | 3181345 | Cooktop, Glass (black) |
|
- | |||||
| 1 | 3181347 | Cooktop, Glass (white) |
|
- | |||||
| 2 | W10854241 | Grommet, Glass Cooktop (4) (almond) (Replaces: 3180080) |
|
$ 6.87 | |||||
| 2 | WP3180081 | Grommet, Glass Cooktop (4) (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass Cooktop (4) (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 3 | 3180087 | Bezel, Cooktop (large) (white) |
|
- | |||||
| 3 | 3180085 | Bezel, Cooktop (large) (black (includes Illus. 5, 6, And 7)) |
|
- | |||||
| 3 | 3180086 | Bezel, Cooktop (large) (almond) |
|
- | |||||
| 5 | 3181659 | Gasket, Burner (large) |
|
- | |||||
| 6 | 4159493 | Washer, Lock |
|
$ 21.02 | |||||
| 7 | 4159072 | Nut, Hex (3) |
|
- | |||||
| 8 | 3180088 | Bezel, Cooktop (small) (black (includes Illus. 6, 7, And 9)) |
|
- | |||||
| 8 | 3180090 | Bezel, Cooktop (small) (white) |
|
- | |||||
| 8 | 3180089 | Bezel, Cooktop (small) (almond) |
|
- | |||||
| 9 | 3181658 | Gasket, Burner (small) |
|
- | |||||
| 12 | 4173550 | Pad, Grate (incls. 5 Pads) |
|
- | |||||
| 13 | 3180922 | Grate, Large (rf & Lr) (includes No.12) (taupe (kgct365xal0)) |
|
- | |||||
| 13 | 3180923 | Grate, Large (rf & Lr) (includes No.12) (shadow Grey (kgct365xwh0)) |
|
- | |||||
| 13 | 3180921 | Grate, Large (rf & Lr) (includes No.12) (black (kgct365xbl0)) |
|
- | |||||
| 14 | 3180928 | Grate (small) L.f.& R.r. (includes No.12) (taupe (kgct365xal0)) |
|
- | |||||
| 14 | 3180929 | Grate (small) L.f.& R.r. (includes No.12) (shadow Grey (kgct365xwh0)) |
|
- | |||||
| 14 | 3180927 | Grate (small) L.f.& R.r. (includes No.12) (black (kgct365xbl0)) |
|
- | |||||
| 15 | 3180082 | Cap, Rapid Burner (2) (black (kgct365xbl0)) |
|
- | |||||
| 15 | 3180083 | Cap, Rapid Burner (2) (taupe (kgct365xal0)) |
|
- | |||||
| 15 | 3180084 | Cap, Rapid Burner (2) (shadow Grey (kgct365xwh0)) |
|
- | |||||
| 16 | 3180092 | Cap, Semi Rapid Burner (2) (taupe (kgct365xwh0)) |
|
- | |||||
| 16 | 3180091 | Cap, Semi Rapid Burner (2) (black (kgct365xwh0)) |
|
- | |||||
| 16 | 3180093 | Cap, Semi Rapid Burner (2) (shadow Grey (kgct365xwh0)) |
|
- | |||||
| 17 | WP3181305 | Knob, Control (4) (white) (Replaces: 3181305) |
|
$ 18.57 | |||||
| 17 | WP3181306 | Knob, Control (4) (almond) (Replaces: 3181306) |
|
$ 22.92 | |||||
| 17 | WP3181304 | Knob, Control (4) (black) (Replaces: 3181304) |
|
$ 16.43 | |||||
| 18 | 3180265 | Burner, Small Sealed Gas Burner (complete) See Page 5 For Further Breakdown. |
|
- | |||||
| 19 | 3180266 | Burner, Large Sealed Gas (complete) See Page 5 For Further Breakdown. |
|
- | |||||
| 20 | 3180288 | Shutter, Burner Air (use With Large Burner) |
|
- | |||||
| 21 | 3180267 | Shutter, Burner Air (use With Small Burner) |
|
- | |||||
| 22 | 3180235 | Screw, Gas Burner |
|
- |
