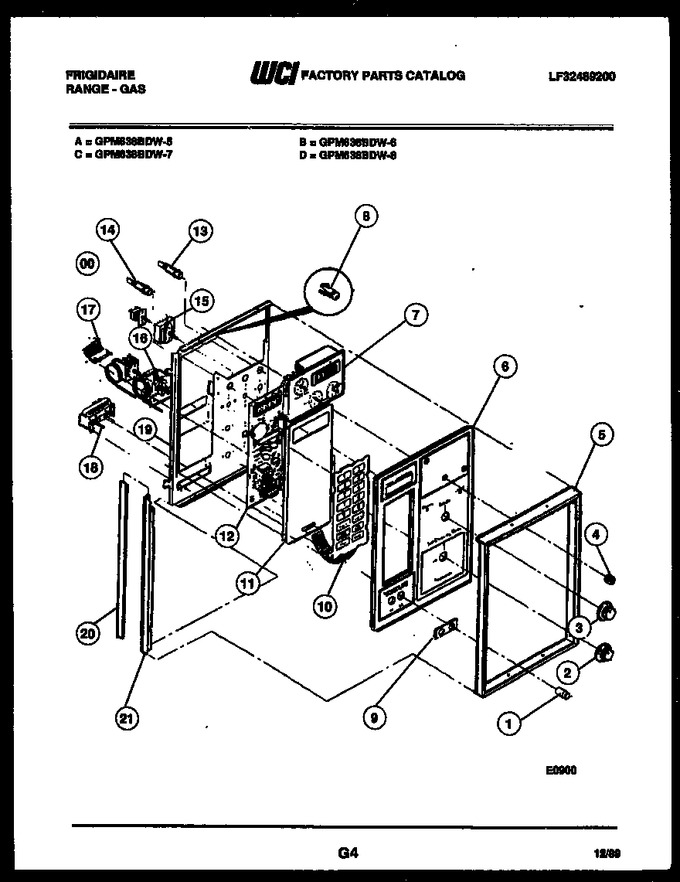

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010399		Button-push (on-off) (2)		Appelez-nous	-
2	3015711		Knob-thermostat		Appelez-nous	-
3	3015710		Knob-selector		Appelez-nous	-
4	8037901		Knob-clock (3)		Appelez-nous	-
5	3091225		Trim-control Panel		Appelez-nous	-
6	3091226		Glass-control Panel		Appelez-nous	-
7	8037915		Clock-digital		Appelez-nous	-
8	8011713		Fastener-clock (3)		Appelez-nous	-
9	8010410		Bezel-microwave Selector Switch		Appelez-nous	-
10	8037904		Switch-membrane Touch		Appelez-nous	-
11	8010412		Panel-switch (plastic)		Appelez-nous	-
12	8012868		Circuit Board (printed)		Appelez-nous	-
13	318T023P11		Indicator Light (3)		Appelez-nous	-
15	3091345		Switch		Appelez-nous	-
16	08067928		Thermostat-lower Oven		Appelez-nous	-
17	8008911		Plug-9 Pin		Appelez-nous	-
18	8008910		Switch-selector ``on-off``		Appelez-nous	-
19	3091468		Panel-control		Appelez-nous	-
20	643T013P03		Seal-microwave		Appelez-nous	-
21	8011888		Cover-microwave Seal		Appelez-nous	-
*27955	8010401		Bushing-c/p Glass (2)		Appelez-nous	-
11A	8010406		Screw-panel (5) (non-illustrated)		Appelez-nous	-
12A	8008904		Screw-circuit Board (4) (non-illustrated)		Appelez-nous	-
18A	636T096P23		Screw-selector Switch To Pnl. (2) (non-illustrated)		Appelez-nous	-
19A	8010406		Screw-panel (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
