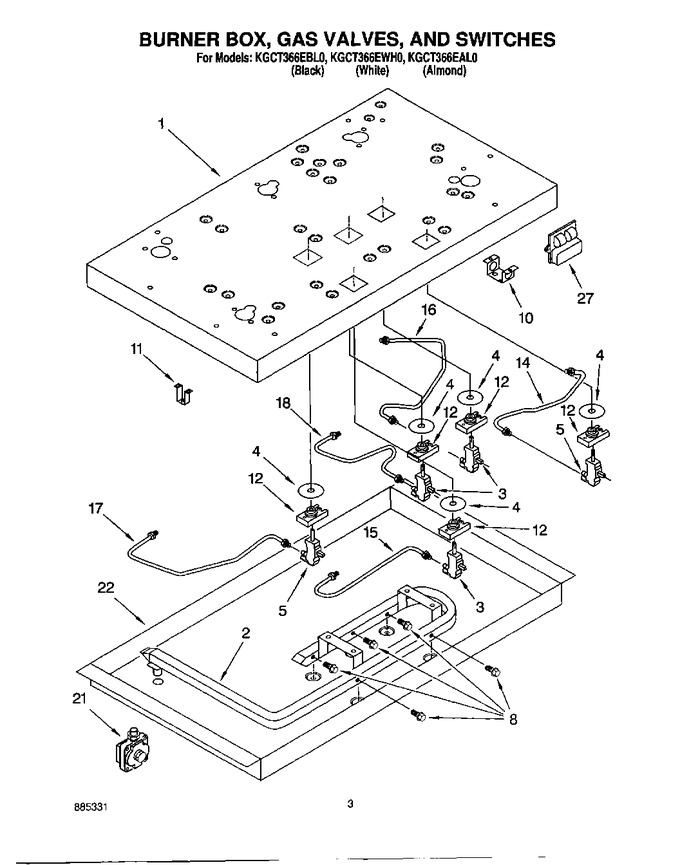

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3190396 | Backer Plate |
|
- | |||||
| 2 | 3190750 | Pipe, Manifold |
|
- | |||||
| 2 | WP3177991 | Screw (4) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 3 | 3185828 | Valve, Gas Burner (lf, Rr, & Cr) |
|
- | |||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | 3185827 | Valve, Gas Burner (rf & Lr) |
|
- | |||||
| 8 | 3185829 | Bolt (gas Valve) |
|
- | |||||
| 10 | 4454647 | Bracket, Burner (5) |
|
- | |||||
| 10 | WP3177991 | Screw (10) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 4454663 | Screw (5) |
|
- | |||||
| 11 | WP3177991 | Screw (18) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 11 | 3190926 | Bracket, Burner Box (9) |
|
- | |||||
| 12 | WP3190779 | Switch, Gas Burner (Replaces: 3190779) |
|
$ 116.75 | |||||
| 14 | 3189880 | Tubing, Large Gas Burner (rf) |
|
- | |||||
| 15 | 3189881 | Tubing, Small Gas Burner (lf) |
|
- | |||||
| 16 | 3189882 | Tubing, Large Gas Gas Burner (rr) |
|
- | |||||
| 17 | 3189883 | Tubing, Small Gas Burner (lr) |
|
- | |||||
| 18 | 3189884 | Tubing, Small Burner (cr) |
|
- | |||||
| 21 | 3177120 | Regulator, Pressure |
|
- | |||||
| 22 | 3148442 | Screw (9) |
|
- | |||||
| 22 | 3190967 | Burner Box |
|
- | |||||
| 27 | 3148443 | Screw (3) |
|
- | |||||
| 27 | WPW10110486 | Module Spark (Replaces: 3190700) |
|
$ 285.33 | |||||
| LIT3191144 | Installation Instructions |
|
- | ||||||
| 3191113 | Front & Back |
|
- | ||||||
| 8186533 | Bracket (Replaces: 3183401) |
|
$ 79.60 | ||||||
| 4173634 | Bushing |
|
$ 5.83 | ||||||
| 3148443 | Ground Screw |
|
- | ||||||
| 3188867 | Cord, Power |
|
$ 168.08 | ||||||
| LIT3191129 | Wiring Diagram (label) |
|
- | ||||||
| LIT3191143 | Use & Care Guide |
|
- | ||||||
| 3191111 | Sides |
|
- | ||||||
| 3191127 | Harness, Ignitor Seal, Foam-cooktop |
|
- | ||||||
| 3191128 | Harness, Switch |
|
- | ||||||
| 3179164 | Tape, Foam |
|
- | ||||||
| 4173627 | Conversion Kit Natural Gas To L.p. |
|
- | ||||||
| 3188310 | Hardware, Mounting |
|
- | ||||||
| 3179557 | Screw (2) |
|
- | ||||||
| 4167077 | Tinnerman Nut |
|
- |
