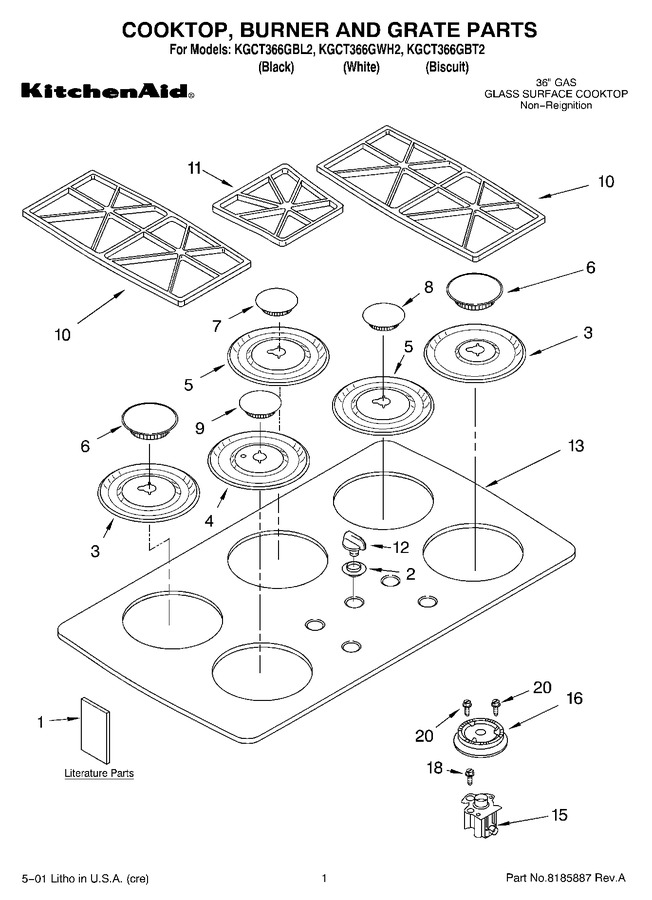

01 - Section
02 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3193071 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3192099 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT4455834 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 3 | 3191308 | Bezel, Cooktop (rf) (lr) (white) |
|
- | |||||
| 3 | 3191307 | Bezel, Cooktop (rf) (lr) (black) |
|
- | |||||
| 3 | 3191819 | Bezel, Cooktop (rf) (lr) (biscuit) |
|
- | |||||
| 4 | 3191499 | Bezel, Cooktop (lf) (white) |
|
- | |||||
| 4 | 3191498 | Bezel, Cooktop (lf) (black) |
|
- | |||||
| 4 | 3191826 | Bezel, Cooktop (lf) (biscuit) |
|
- | |||||
| 5 | 3191302 | Bezel, Cooktop (rr) (center) (black) |
|
- | |||||
| 5 | 3191818 | Bezel, Cooktop (rr) (center) (biscuit) |
|
- | |||||
| 5 | 3191303 | Bezel, Cooktop (rr) (center) (white) |
|
- | |||||
| 6 | 3191729 | Cap, (rf) (lr) (white) |
|
- | |||||
| 6 | 3191730 | Cap, (rf) (lr) (biscuit) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (lr) (black) |
|
$ 33.65 | |||||
| 7 | 3191732 | Cap, (center) (white) |
|
- | |||||
| 7 | 3191731 | Cap, (center) (black) |
|
$ 35.27 | |||||
| 7 | 3191733 | Cap, (center) (biscuit) |
|
- | |||||
| 8 | 3191736 | Cap, (rr) (biscuit) |
|
- | |||||
| 8 | 3191735 | Cap, (rr) (white) |
|
$ 43.51 | |||||
| 8 | 3191734 | Cap, (rr) (black) |
|
$ 41.09 | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3191738 | Cap, (lf) (white) |
|
- | |||||
| 9 | 3191739 | Cap, (lf) (biscuit) |
|
- | |||||
| 10 | 3191485 | Grate, Burner (black) |
|
$ 96.94 | |||||
| 10 | 3191486 | Grate, Burner (white) |
|
$ 99.21 | |||||
| 10 | 3191487 | Grate, Burner (biscuit) |
|
- | |||||
| 11 | 3191281 | Grate, Filler (white) |
|
- | |||||
| 11 | 3191282 | Grate, Filler (biscuit) |
|
- | |||||
| 11 | 3191280 | Grate, Filler (black) |
|
- | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 13 | 3192146 | Cooktop, Glass (black) |
|
- | |||||
| 13 | 3192149 | Cooktop, Glass (biscuit) |
|
- | |||||
| 13 | 3192147 | Cooktop, Glass (white) |
|
- | |||||
| 15 | 9754187 | Holder, Orifice (rr) |
|
- | |||||
| 15 | 9754188 | Holder, Orifice (lf) |
|
$ 48.21 | |||||
| 15 | 9754186 | Holder, Orifice (center) |
|
- | |||||
| 15 | 9754182 | Holder, Orifice (rf - Lr) |
|
- | |||||
| 16 | WP4455981 | Head, Burner (rr) (Replaces: 8273214) |
|
Immediately | $ 78.77 | ||||
| 16 | 8273216 | Head, Burner (rf - Lr) |
|
- | |||||
| 16 | WP4455980 | Head, Burner (center) (Replaces: 8273215) |
|
$ 55.89 | |||||
| 16 | 4455849 | Head, Burner ((lf)) |
|
$ 47.68 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
