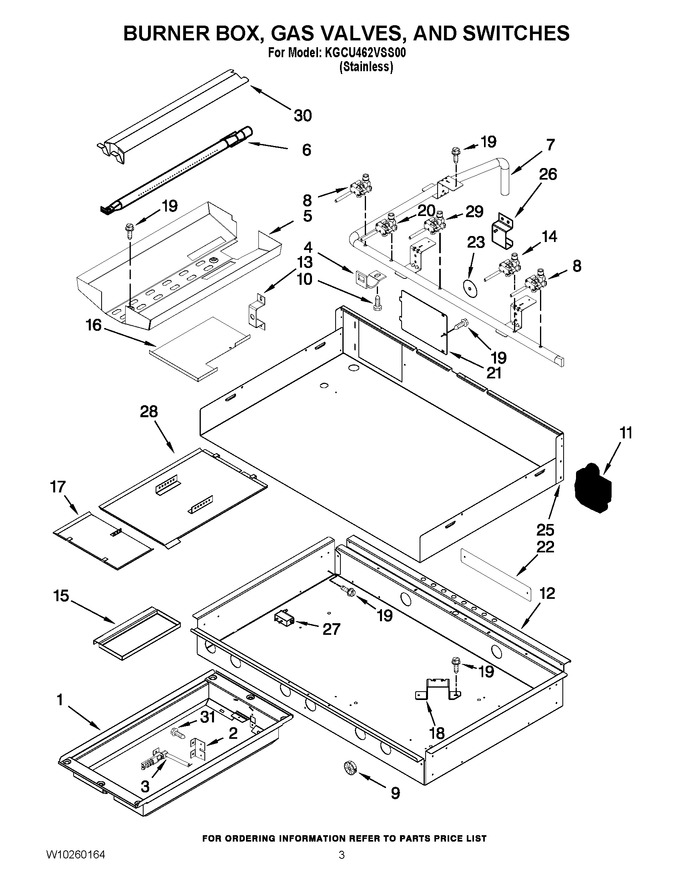

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10267890 | Module, Grill (Replaces: W10267890) |
|
$ 424.65 | |||||
| 2 | W10250461 | Bracket, Grill Ignitor |
|
- | |||||
| 3 | W10268770 | Ignitor, Grill |
|
$ 145.52 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10269564 | Deflector, Grill |
|
$ 173.90 | |||||
| 6 | W10223569 | Burner, Grill |
|
$ 232.98 | |||||
| 7 | W10115897 | Manifold |
|
- | |||||
| 8 | W10326645 | Valve, Single (lr & Rf) |
|
$ 162.52 | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 7.20 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.14 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 306.39 | ||||
| 12 | W10250425 | Burner Box |
|
- | |||||
| 13 | W10250475 | Bracket, Grill Orifice Mounting |
|
- | |||||
| 14 | WPW10385583 | Valve, Single (rr) (Replaces: W10305286) |
|
Immediately | $ 298.89 | ||||
| 15 | W10250473 | Drip Tray |
|
$ 201.95 | |||||
| 16 | W10250474 | Drip Tray Holder |
|
- | |||||
| 17 | W10250468 | Drip Tray Router |
|
- | |||||
| 18 | W10115929 | Bracket, Burner (lr,rf,rr) |
|
- | |||||
| 18 | W10280796 | Bracket, Burner (lf) |
|
- | |||||
| 19 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 20 | WPW10371235 | Valve, Gas (lf) (Replaces: W10305287) |
|
Immediately | $ 298.94 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | W10250433 | Cover, Plate |
|
- | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 9.00 | |||||
| 25 | W10189156 | Cover, Burner Box |
|
- | |||||
| 26 | 8285790 | Bracket, Mounting Orifice |
|
$ 77.27 | |||||
| 27 | W11601369 | Reignitor, Gas (Replaces: W10116108) |
|
Immediately | $ 75.04 | ||||
| 28 | W10250470 | Drip Tray, Router 1 |
|
$ 128.77 | |||||
| 29 | W10305285 | Valve, Gas Grill |
|
$ 327.92 | |||||
| 30 | W10250462 | Flame Spreader |
|
$ 92.34 | |||||
| 31 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| NI | W10115908 | Tubing, Gas (lr) |
|
- | |||||
| NI | W10115910 | Tubing, Gas (rf) |
|
$ 176.20 | |||||
| NI | W10280797 | Tubing, Gas (rr) |
|
- | |||||
| NI | W10115911 | Tubing, Gas (lf) |
|
$ 169.51 | |||||
| NI | W10158807 | Tubing, Gas (grill) |
|
$ 85.19 |
