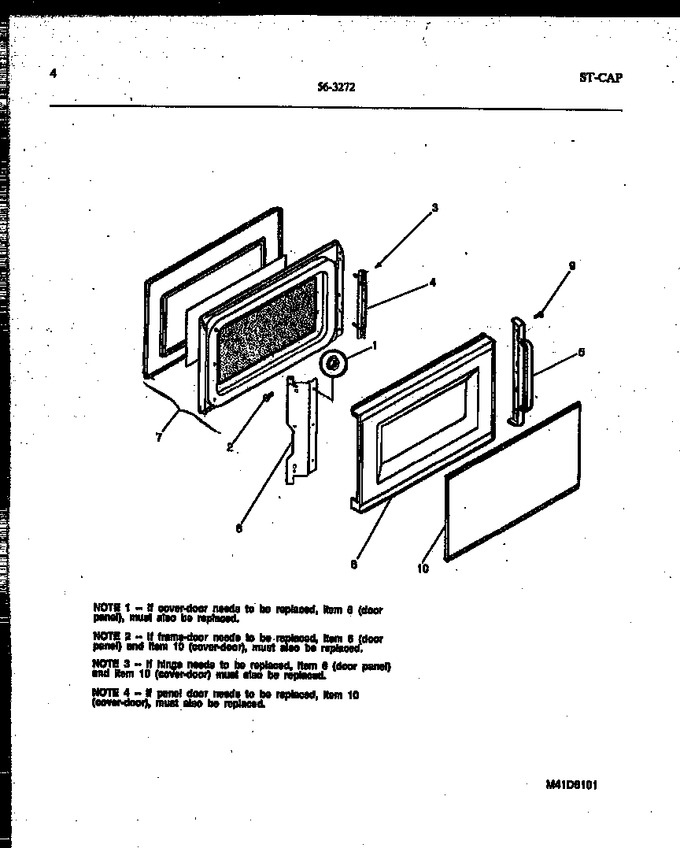

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303013281 | Nut, Hex, 8-32, Hinge, (3) |
|
- | |||||
| 2 | 5303013882 | Screw, Cr Flat Head, 8(a) X 1/2, Hinge (3) |
|
- | |||||
| 3 | 5303013960 | Screw, Spcl Low Pf, 8, 32 X 5/8, Angle, (2) |
|
- | |||||
| 4 | 5303283839 | Angle-hook Mtg Assy |
|
- | |||||
| 5 | 5303271415 | Handle, Door |
|
- | |||||
| 6 | 5303271434 | Panel-door, (if Panel Door Needs To Be Replaced, Item 10 |
|
- | |||||
| 7 | 5303922051 | Frame-door, Black, Service (if Frame-door Needs To Be Re |
|
- | |||||
| 8 | 5303279373 | Hinge-door, Black (if Hinge Needs To Be Replaced, Item 6 |
|
- | |||||
| 9 | 5303051818 | Screw, Handle, 8, 18 X 1/2.(3) |
|
- | |||||
| 10 | 5303922123 | Cover-door, (includes Tape) (if Cover-door Needs To Be R |
|
- |
