SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System

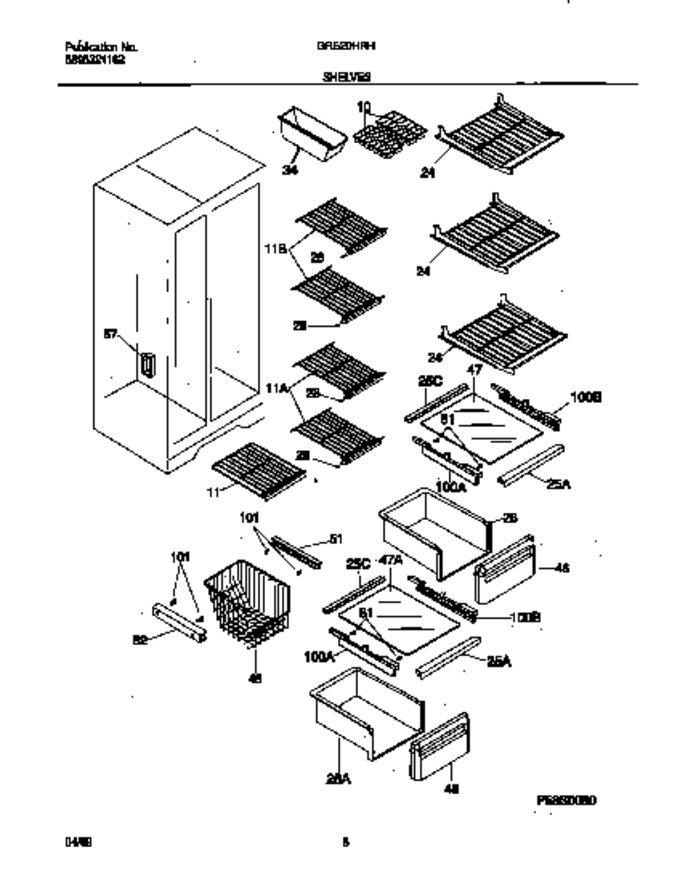

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5304405990		Shelf-freezer,fixed Wire		Appelez-nous	-
11	5304405989		Shelf-freezer		Appelez-nous	-
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
24	5303291258		Shelf-cantilever, Refr		Appelez-nous	-
25	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
25	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
26	5303288968		Pan-storage, Lower				$ 204.84
26	5303288971		Pan-storage, Upper				$ 171.91
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
34	3018945		Container-ice		Appelez-nous	-
46	5303294248		Front-storage Pan		Appelez-nous	-
47	215723551		Insert-pan Cover,glass ,clear ,lower				$ 75.72
47	218390555		Insert-pan Cover, Glass, Clear, White Graphics		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
*73577	215328300		Clip-shelf				$ 14.02
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18

    View Diagram in Separate Window       Print Part List
