SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

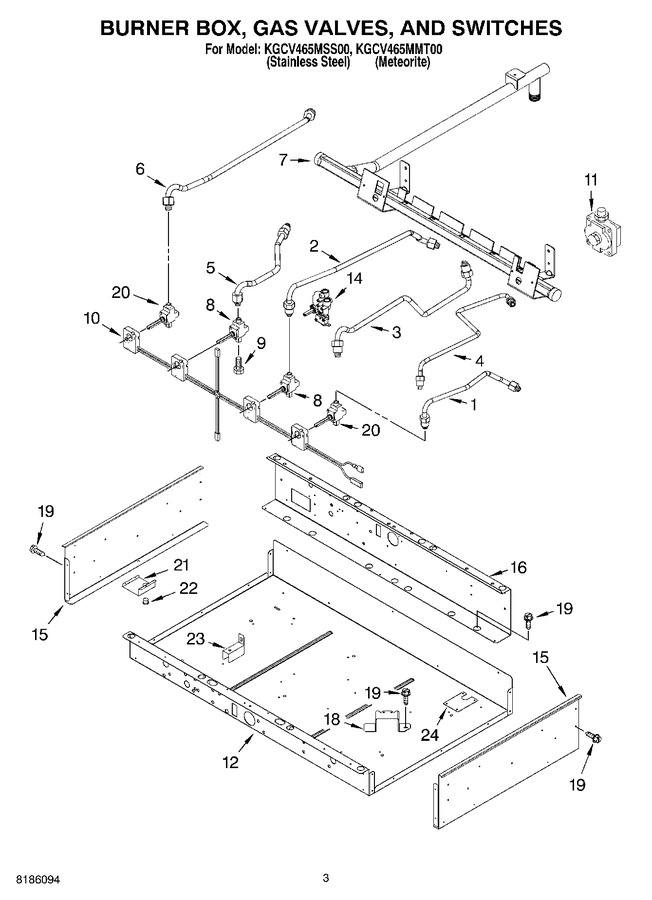

02 - Burner Box, Gas Valves, And Switches


03 - Triple Crown Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285160		Tubing, Gas Burner - Rf		Appelez-nous	-
2	8285159		Tubing, Gas Burner - Rr		Appelez-nous	-
3	8285189		Tubing, Gas Burner - Inner		Appelez-nous	-
4	8285190		Tubing, Gas Burner - External		Appelez-nous	-
5	8285157		Tubing, Gas Burner - Lf		Appelez-nous	-
6	8285158		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8285156		Manifold		Appelez-nous	-
8	3192157		Valve, Burner (turbo)		Appelez-nous	-
9	3185829		Bolt, Valve		Appelez-nous	-
10	8285180		Burner Switch & Harness Assembly		Appelez-nous	-
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	8285154		Burner Box		Appelez-nous	-
14	8285247		Dual Valve, Triple Crown Brnr		Appelez-nous	-
15	8285359		Side, Burner Box (left Hand)		Appelez-nous	-
15	8285360		Side, Burner Box (right Hand)		Appelez-nous	-
16	8285358		Support, Rear		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	3191292		Valve, Burner Auxillary				$ 120.40
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	4449845		Bracket-support		Appelez-nous	-
24	N/A		Miscellaneous		Appelez-nous	-
24	1129449		Bushing		Appelez-nous	-
24	4456531		Harness, Wire Ignitor 28``		Appelez-nous	-
24	8285402		Harness, Wire Jumper (ground)		Appelez-nous	-
24	4456532		Harness, Wire Ignitor (42``)		Appelez-nous	-
24	4456530		Harness, Wire Ignitor (15``)		Appelez-nous	-
24	8285442		L.p. Orific Spud Pack				$ 23.85
24	W10851604		Triple Crown Brnr Spud Pack   (Replaces: 8285443)				$ 27.39
24	8285361		Cover, Panel		Appelez-nous	-
24	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
24	4173634		Bushing, Electric				$ 5.83

    View Diagram in Separate Window       Print Part List
