01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Triple Crown Burner, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

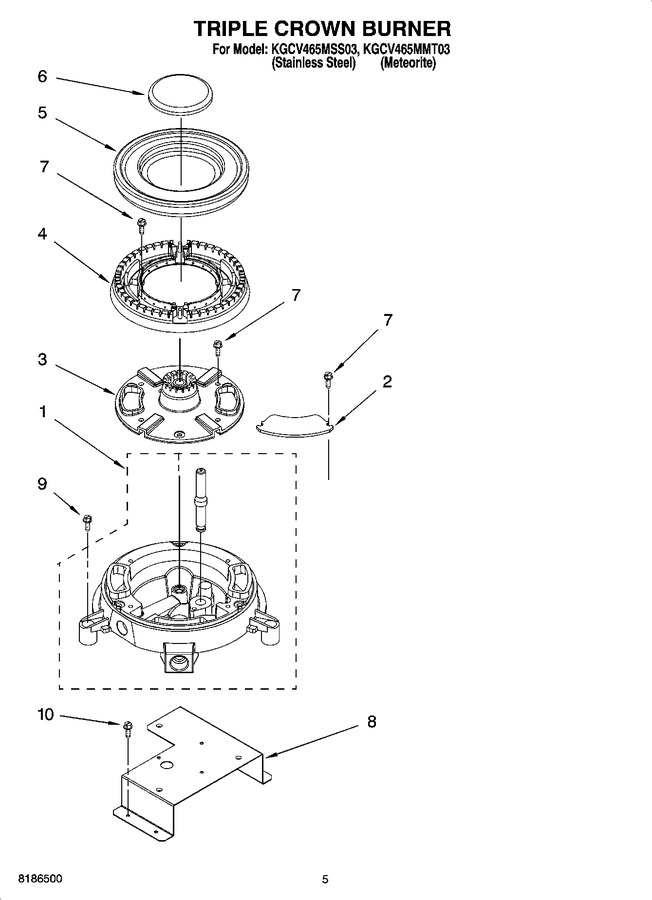

| 1 | 8285248 | Burner Assy., Triple Crown Brnr |
|
- | |||||
| 2 | 8285250 | Plate, Closure |
|
$ 7.51 | |||||
| 3 | WP8285255 | Internal Head, Triple Crown Brnr (Replaces: 8285255) |
|
Immediately | $ 119.12 | ||||
| 4 | WP8285256 | External Head, Triple Crown Brnr (Replaces: 8285256) |
|
$ 121.97 | |||||
| 5 | 8285258 | Cap, Burner Ext. |
|
$ 54.26 | |||||
| 6 | 8285257 | Cap, Burner Int. |
|
$ 49.14 | |||||
| 7 | WP3400702 | Screw (Replaces: 3400702) |
|
$ 11.22 | |||||
| 8 | 8285177 | Bracket, Triple Crown Burner |
|
- | |||||
| 9 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 10 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| N/A | Miscellaneous |
|
- | ||||||
| W10392007 | Power Cord (Replaces: 9763116) |
|
$ 96.25 | ||||||
| 4173634 | Bushing, Electric |
|
$ 5.83 | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 8285402 | Harness, Wire Jumper (ground) |
|
- | ||||||
| 4456628 | Harness, Wire (ignitor 42``) |
|
$ 95.35 | ||||||
| 8285442 | L.p. Orific Spud Pack |
|
$ 23.85 | ||||||
| W10851604 | Triple Crown Brnr Spud Pack (Replaces: 8285443) |
|
$ 27.39 | ||||||
| 8537055 | Cleaner, S.steel |
|
- |
