01 - Cooktop, Burner And Grate Parts

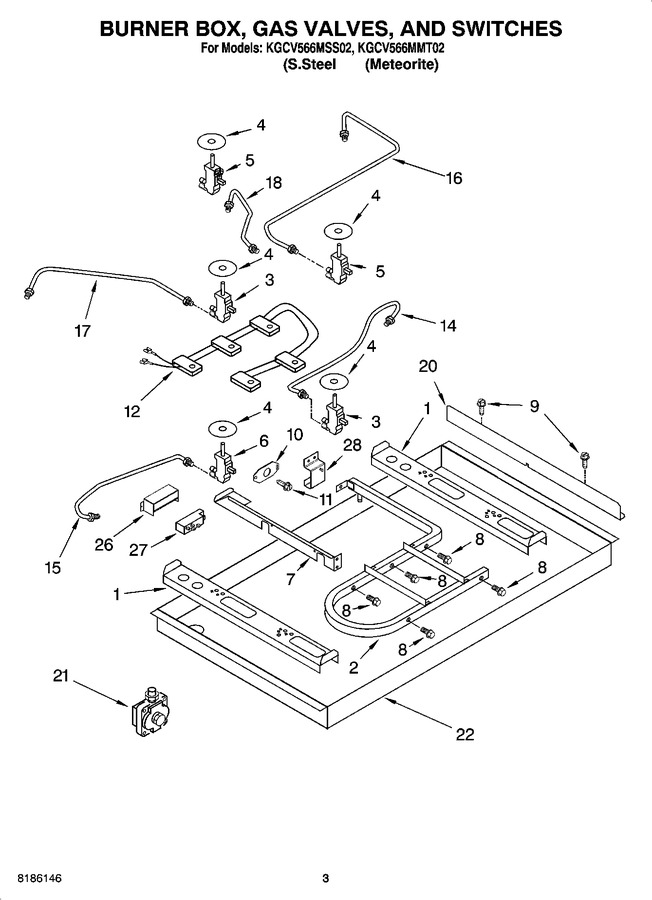

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203756 | Rail, Burner (Replaces: 3191557) |
|
- | |||||
| 1 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 2 | 4456465 | Pipe, Manifold |
|
- | |||||
| 3 | WP4456816 | Valve, Gas Burner Burner, (rf) (lr) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | WP4456817 | Valve, Gas Burner (rr) (center) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 6 | 4456818 | Valve, Gas Burner (lf) |
|
$ 231.30 | |||||
| 7 | 3192819 | Rail, Center |
|
- | |||||
| 8 | 8523704 | Bolt, Gas Valve |
|
- | |||||
| 9 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 3192491 | Bracket, Manifold |
|
- | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 12 | WP4456901 | Harness & Switches (Replaces: 4456901) |
|
$ 217.02 | |||||
| 14 | 4456471 | Tubing, Gas Burner (rf) |
|
- | |||||
| 15 | 4456469 | Tubing, Gas Burner (lf) |
|
- | |||||
| 16 | 4456470 | Tubing, Gas Burner (rr) |
|
- | |||||
| 17 | 4456472 | Tubing, Gas Burner (lr) |
|
- | |||||
| 18 | 3191332 | Tubing, Gas Burner (center) |
|
- | |||||
| 20 | 3191462 | Shield, Heat |
|
- | |||||
| 21 | 3177120 | Regulator, Pressure |
|
- | |||||
| 22 | 4456787 | Burner Box |
|
- | |||||
| 26 | 4457000 | Heat Shield, Spark Module |
|
- | |||||
| 27 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 27 | WPW10110486 | Module, Spark (Replaces: 8522424) |
|
$ 285.33 | |||||
| 28 | 4456627 | Harness, Ignitor 28`` |
|
$ 189.13 | |||||
| 28 | 3191933 | Seal, Foam-cooktop |
|
$ 29.81 | |||||
| 28 | 4455918 | Hardware, Mounting |
|
- | |||||
| 28 | WP3192741 | Conversion Kit Natural Gas To L.p. (Replaces: 3192741) |
|
$ 41.81 | |||||
| 28 | 4456626 | Harness, Ignitor 15`` (2) |
|
$ 66.34 | |||||
| 28 | 8285402 | Wire, Ground |
|
- | |||||
| 28 | 3192613 | Bracket, Mounting |
|
- | |||||
| 28 | N/A | Wiring Harness Parts |
|
- | |||||
| 28 | W10392007 | Cord, Power (Replaces: 3192231) |
|
$ 96.25 | |||||
| 28 | 4173634 | Bushing |
|
$ 5.83 | |||||
| 28 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 28 | 8186533 | Bracket (Replaces: 4455917) |
|
$ 79.60 |
