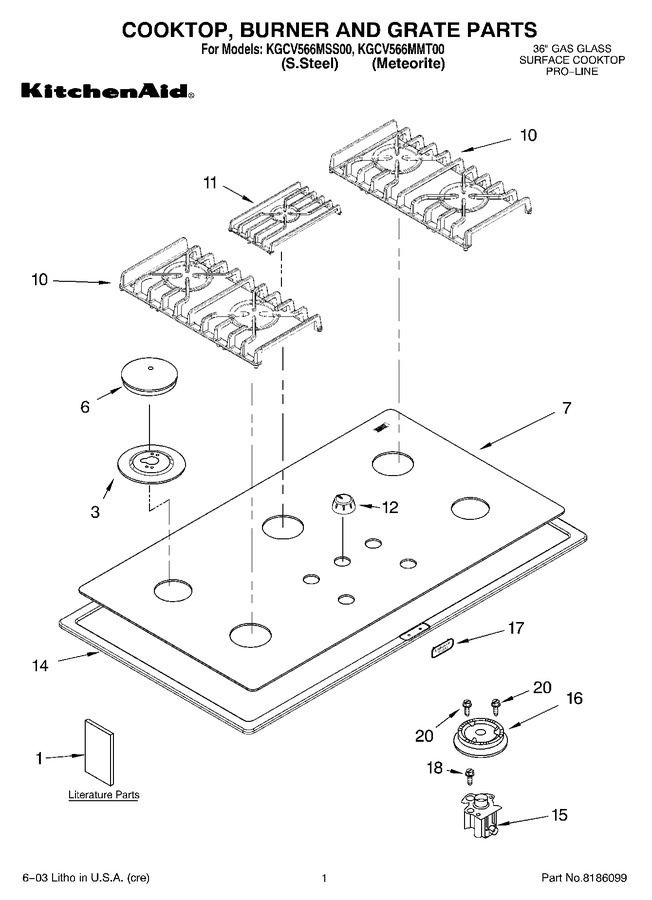

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4456479		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3192099		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT4456733		Literature Parts (l.p. Conversion Instructions)		Appelez-nous	-
1	LIT4455834		Literature Parts (installation Instructions)		Appelez-nous	-
3	9753602GB		Bezel (12k)		Appelez-nous	-
3	9753600GB		Bezel (14k)		Appelez-nous	-
3	9753601GB		Bezel (6k)		Appelez-nous	-
6	WP8284669		Cap (6k)   (Replaces: 8284669)			Immediately	$ 64.79
6	4455243		Cap (14k)				$ 41.37
6	4456536		Cap (12k)				$ 55.23
7	4456815		Cooktop Glass		Appelez-nous	-
10	4456475		Grate, Side (brnr)		Appelez-nous	-
11	4456476		Grate, Cntr (brnr)		Appelez-nous	-
12	4456490		Knob, Control (5) (meteorite)		Appelez-nous	-
12	4456489		Knob, Control (5) (euro Silver)		Appelez-nous	-
14	4456467		Trim, Glass (brushed S.steel)		Appelez-nous	-
14	4456468		Trim, Glass (meteorite)		Appelez-nous	-
15	9754188		Holder, Orifice (lf)				$ 48.21
15	9754187		Holder, Orifice (rr)		Appelez-nous	-
15	9754194		Holder, Orifice (center)		Appelez-nous	-
15	9754182		Holder, Orifice (rf - Lr)		Appelez-nous	-
16	WP4455981		Head, Burner (12k)   (Replaces: 4455981)			Immediately	$ 78.77
16	4455979		Head, Burner (6k)				$ 28.52
16	4455849		Head, Burner (14k)				$ 47.68
17	8531724		Nameplate		Appelez-nous	-
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42

    View Diagram in Separate Window       Print Part List
