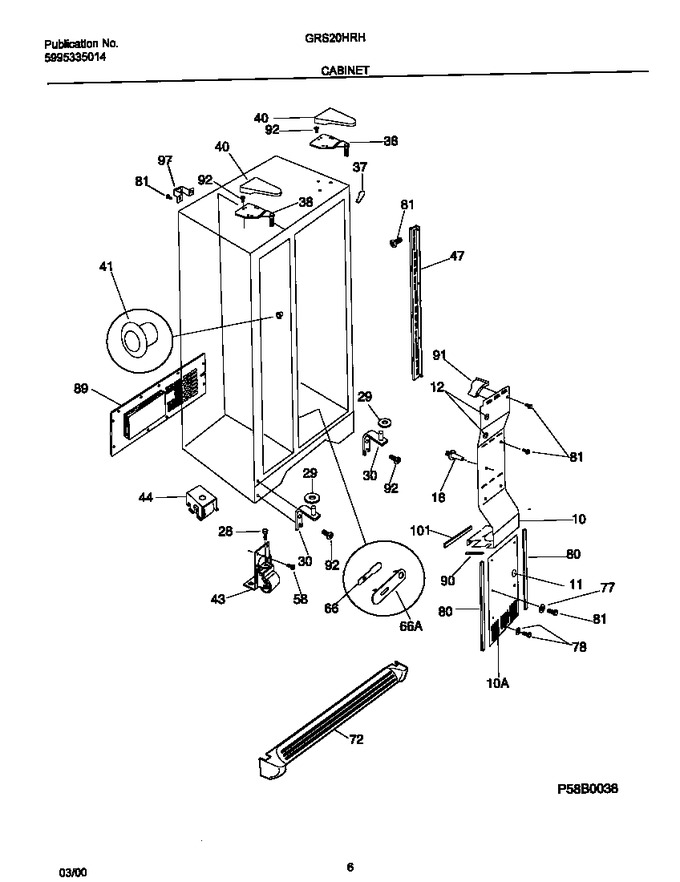

SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	218748902		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303291143		Plug-decorative, I.m. Inlet Tube, & Elec Conn		Appelez-nous	-
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	5303289060		Bracket-lower Hinge,rh/lh ,w/hinge Pin		Appelez-nous	-
37	5303321081		Trim-cabinet Corner, White				$ 8.82
38	218215241		Bracket-upper Hinge,with Closer ,white				$ 149.94
40	5303318773		Cover-upper Hinge, White				$ 42.47
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
58	5308002748		Screw		Appelez-nous	-
66	215050201		Damper-meat Keeper		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
72	218359604		Grille/kickplate, White		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249802		Seal-coil Cover, (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
89	5303288947		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218769900		Deflector-air, Air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
97	5303289299		Bracket-im Plug		Appelez-nous	-
101	218663103		Gasket-air Duct Cvr		Appelez-nous	-
*46247	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*46248	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*46249	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
*46250	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
*46251	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
*46252	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
*46253	5303322647		Tape-foam		Appelez-nous	-
*46254	218902101		Cap-protector, Lower Hinge		Appelez-nous	-
*46255	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*46257	215058000		Plug-wtr Inlet Tube				$ 2.73
*46258	5308016571		Plug-button,cab Liner Holes				$ 4.79
10A	218751301		Cover-evap Coil,lower		Appelez-nous	-
10B	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
