01 - Cooktop, Burner And Grate Parts

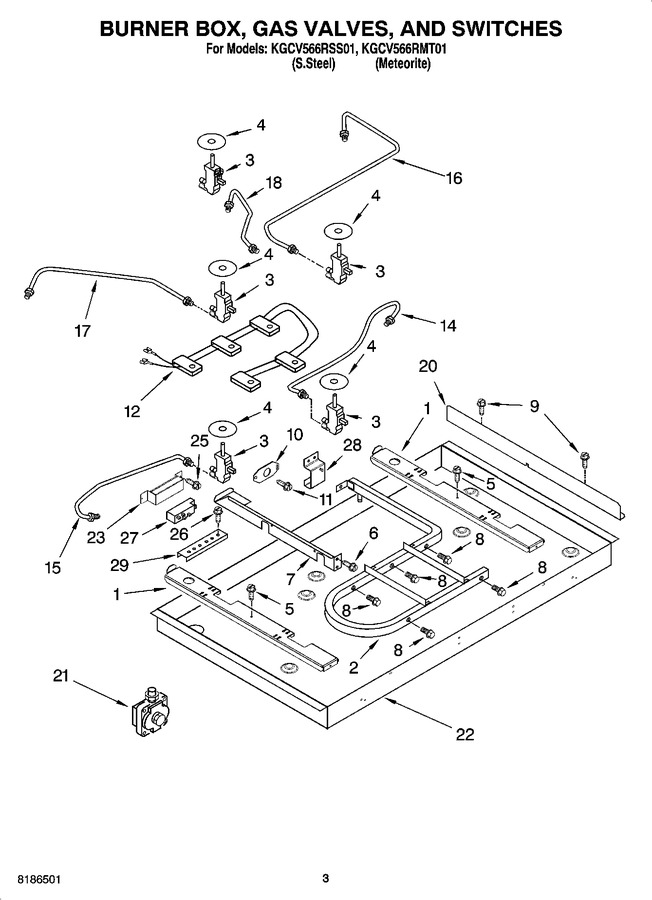

02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8285796 | Rail, Burner |
|
- | |||||
| 2 | 8286243 | Pipe, Manifold |
|
- | |||||
| 3 | 8286561 | Valve, Gas Burner (ultra Rapid (2)) |
|
$ 277.50 | |||||
| 3 | 8286559 | Valve, Gas Burner (auxi (2)) |
|
$ 123.31 | |||||
| 3 | WP4456817 | Valve, Gas Burner (large) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 6 | WP3400806 | Screw (Replaces: 3400806) |
|
$ 6.94 | |||||
| 7 | 8285791 | Rail, Center |
|
- | |||||
| 8 | 3186217 | Bolt, Gas Valve |
|
$ 5.53 | |||||
| 9 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 3192491 | Bracket, Manifold |
|
- | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 12 | WP4456901 | Harness & Switches (Replaces: 4456901) |
|
$ 217.02 | |||||
| 14 | 8285768 | Tubing, Gas Burner (rf) |
|
$ 167.83 | |||||
| 15 | 8285766 | Tubing, Gas Burner (lf) |
|
$ 169.65 | |||||
| 16 | 8285767 | Tubing, Gas Burner (rr) |
|
$ 178.67 | |||||
| 17 | 8285769 | Tubing, Gas Burner (lr) |
|
- | |||||
| 18 | 8285770 | Tubing, Gas Burner (center) |
|
$ 153.93 | |||||
| 20 | 3191462 | Shield, Heat |
|
- | |||||
| 21 | 4454571 | Regulator, Pressure |
|
$ 108.68 | |||||
| 22 | 8285773 | Burner Box |
|
- | |||||
| 23 | 8285789 | Shield, Heat |
|
$ 154.04 | |||||
| 25 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 26 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 27 | WPW10110486 | Module, Spark (Replaces: 8522424) |
|
$ 285.33 | |||||
| 28 | 8285790 | Bracket, Mounting |
|
$ 73.58 | |||||
| 29 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 4173634 | Bushing |
|
$ 5.83 | ||||||
| 4456626 | Harness, Ignitor 15`` (2) |
|
$ 66.34 | ||||||
| W10392007 | Cord, Power (Replaces: 9763116) |
|
$ 96.25 | ||||||
| 8285402 | Wire, Ground |
|
- | ||||||
| 4456627 | Harness, Ignitor 28`` |
|
$ 189.13 | ||||||
| WP8286320 | Conversion Kit (Replaces: 8286320) |
|
$ 115.78 | ||||||
| 4455918 | Hardware, Mounting |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 8537055 | Cleaner, S.steel |
|
- | ||||||
| 3191933 | Seal, Foam-cooktop |
|
$ 29.81 | ||||||
| 4167077 | Tinnerman Nut |
|
- | ||||||
| 8186533 | Bracket (Replaces: 3183401) |
|
$ 79.60 | ||||||
| WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 |
