SELECT A DIAGRAM

Diagram for 01 - Side By Side Refrigerator
01 - Side By Side Refrigerator

Diagram for 02 - Freezer Door Section
02 - Freezer Door Section

Diagram for 03 - Refrigerator Door Section
03 - Refrigerator Door Section

Diagram for 04 - Cabinet, Light Shields, Mullion
04 - Cabinet, Light Shields, Mullion

Diagram for 05 - Shelves, Water Tank, 3-door Mullion
05 - Shelves, Water Tank, 3-door Mullion

Diagram for 06 - Controls, Damper, Fan Section
06 - Controls, Damper, Fan Section

Diagram for 07 - Cooling System
07 - Cooling System


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 215734311 Gasket-frzr Door, White, Magnetic Appelez-nous -
5 215473602 Support-door Rack, Rh/lh   (Replaces: 215473601) In-Stock Immediately $ 11.58

8 215366047 Rack-door, (5) Appelez-nous -
9 5303288955 Panel-inner Door, Frzr Appelez-nous -
11 215644501 Panel-frzr Door, White, W/foam Insulatn Appelez-nous -
13 5303289522 Door Stop Special Order $ 40.17

17 215100001 Handle End, White Appelez-nous -
18 215339601 Handle-door, White Appelez-nous -
21 215218600 Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 Appelez-nous -
22 5303289320 Bearing-hinge Special Order $ 19.69

37 215117408 Trim-handle, 15.88``, White, Upper Appelez-nous -
58 5308002746 Screw, Hex Washer Head, 8-15(a) X 1/2, Special Appelez-nous -
63 215117206 Rail-handle Trim Mtg, Lower Appelez-nous -
*10000 215361200 Foam Strip, Handle Mtg Hole Appelez-nous -
*10001 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91

21B 215659600 Screw-handle Mfg,hex Head,10-32 X 1/2 Appelez-nous -
37A 215117410 Trim-handle, 31.46``, White, Lower Appelez-nous -
63A 215117208 Rail-handle Trim Mtg, Upper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

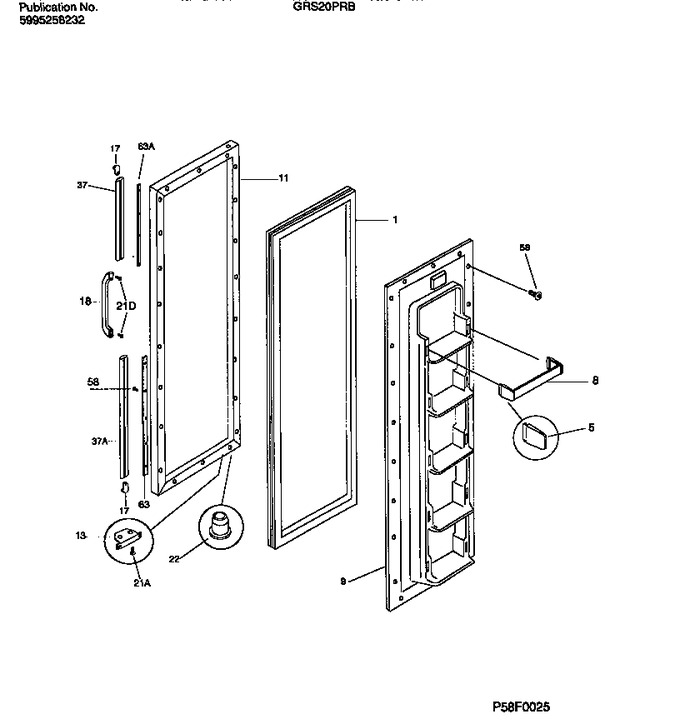

Diagram for GRS20PRBW0
