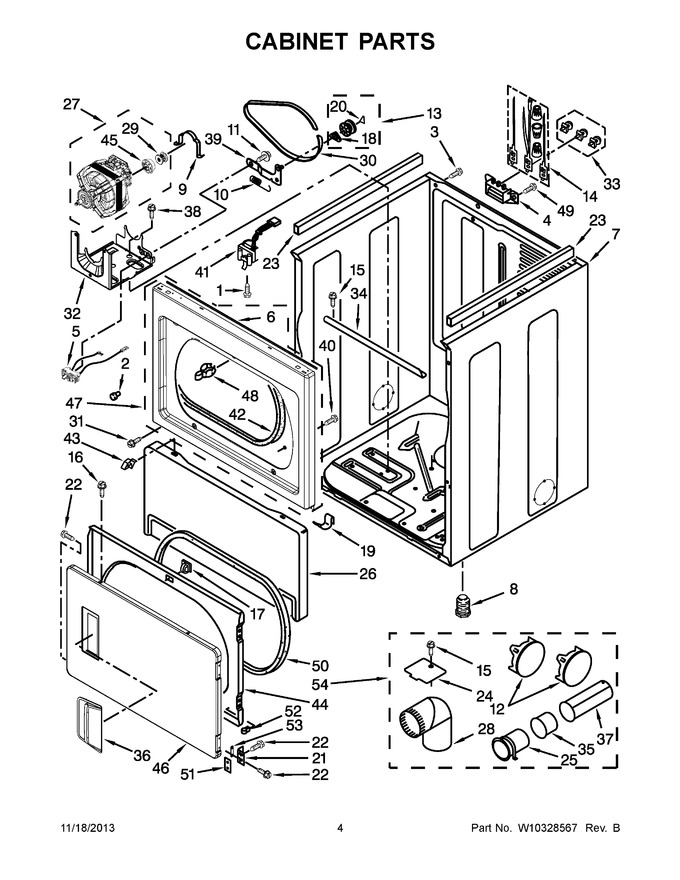

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	W10312811		Seal, Spill Guard				$ 67.73
7	W11417441		Cabinet (white)   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: 3388672)			Immediately	$ 33.74
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	WPW10139210		Screw   (Replaces: 3390646)				$ 8.03
16	WP694091		Screw   (Replaces: 694091)				$ 7.55
17	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
18	WPW10512946		Washer, Tri Ring   (Replaces: 690997)			Immediately	$ 10.16
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	W11175815		Hinge, Spring Assembly (silver)   (Replaces: 3389247)				$ 85.48
22	WP488627		Screw   (Replaces: 342055)				$ 8.11
23	W10336128		Seal, Foam   (Replaces: W10307570)				$ 15.08
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
25	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
26	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
27	WPW10508324		Motor (60 Hz)   (Replaces: W10281085)			Immediately	$ 342.91
28	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
29	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	W10236068		Bracket, Cabinet				$ 24.47
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 82.90
36	WPW10284182		Handle, Door (white)   (Replaces: W10284182)			Immediately	$ 102.91
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 33.87
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.61
41	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 28.79
42	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 32.49
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.88
44	280083		Door, Inner (white)   (Replaces: 3392563)				$ 301.37
45	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
46	W10322551		Door, Outer (white)   (Replaces: W10279721)				$ 164.58
47	W10193554		Panel, Front (white)		Appelez-nous	-
48	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
49	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.61
50	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
51	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
52	3389249		Nut, ``u``		Appelez-nous	-
53	W10191265		Plug, Hinge Hole (white)				$ 46.49
54	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 92.81
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
