SELECT A DIAGRAM

01 - Cover

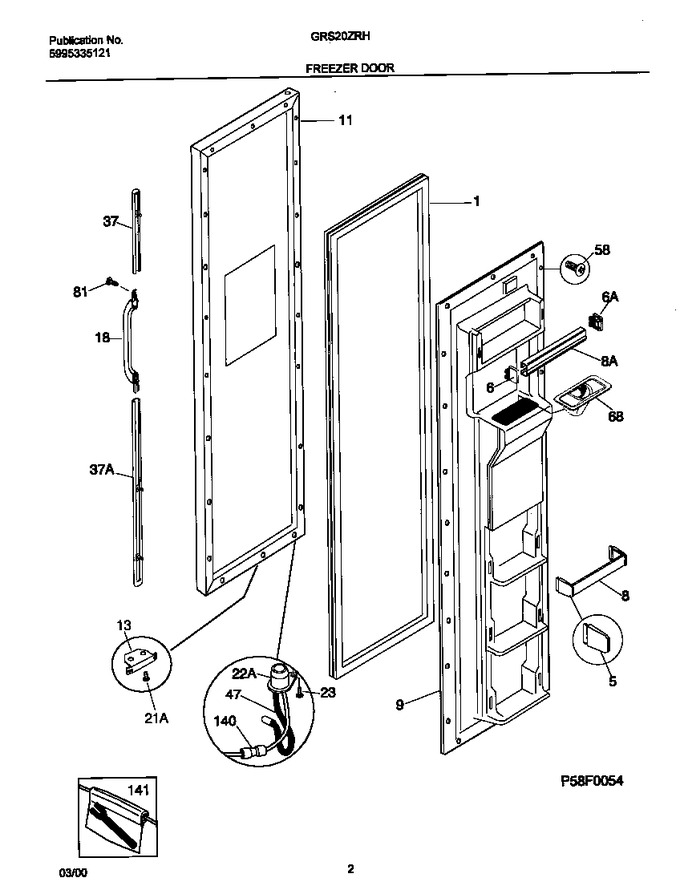

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734311		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
6	3206166		Support-door Rack, Lh   (Replaces: 5303324303)			Immediately	$ 9.93
6	3206165		Support-door Rack, Rh   (Replaces: 5303324321)			Immediately	$ 8.19
8	215806350		Rack-door		Appelez-nous	-
8	218687429		Rack-door		Appelez-nous	-
9	218748601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918131		Panel-ext Frzr Door,white ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218668401		Handle-door, White				$ 74.97
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
37	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
47	218922901		Wiring Harness,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
*39240	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*39241	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
