SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts

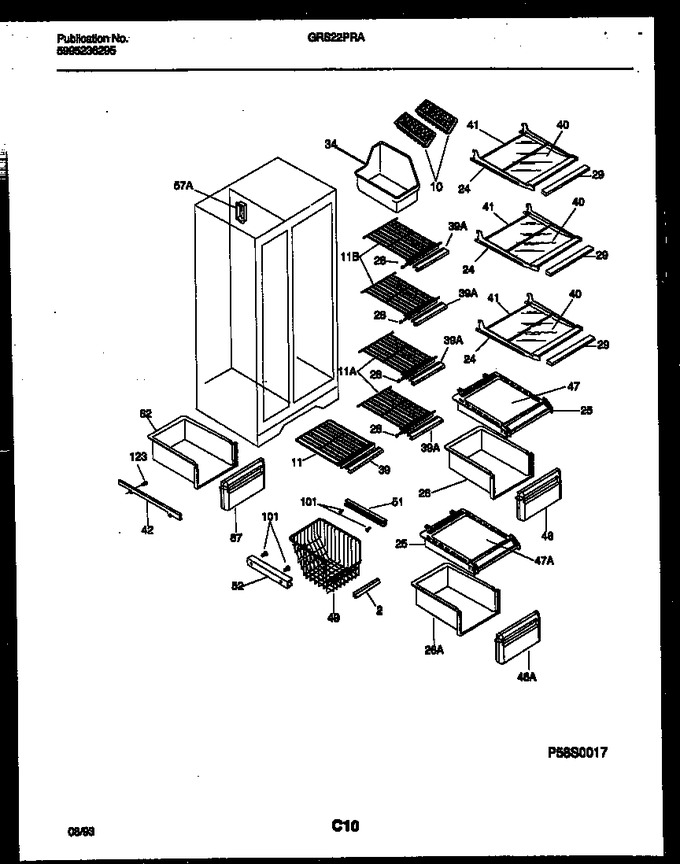

05 - Shelves And Supports


06 - Controls-refrigerator And Controls-


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303289518		Shelf-freezer,sliding Wire		Appelez-nous	-
24	215069004		Frame-refr Shelf, Cantilever, (3)		Appelez-nous	-
25	5303289587		Cover-storage Pan, Upper & Lower, (2)		Appelez-nous	-
26	5303289500		Pan-storage,upper				$ 174.74
28	3201150		Cap-protector				$ 4.57
29	5303298154		Trim-refr Shelf, Front, (3)		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
39	5303298153		Trim-frzr Shelf, (4)		Appelez-nous	-
40	5303298151		Shelf-glass, Refr Shelf, (3)		Appelez-nous	-
41	5303298150		Trim-refr Shelf, Snap-on, Rear, (3)		Appelez-nous	-
42	215002301		Hanger-deli Tray, Lh				$ 65.82
46	215042005		Front, Storage Pan, Upper		Appelez-nous	-
47	5303298149		Insert-crisper Cvr, Glass		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	5303296810		Hanger-basket, Lh		Appelez-nous	-
62	5303289517		Tray - Deli				$ 133.19
67	5303298203		Front-deli Tray		Appelez-nous	-
101	5308007097		Screw, Cr Truss Head, 8(a) X 3/4		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*59668	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	215111701		Shelf, Freezer, Fixed Wire, (2)		Appelez-nous	-
25A	5303289586		Trim-storage Pan Cvr (non-illustrated)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
29A	5303209742		Retainer-glass (non-illustrated)		Appelez-nous	-
39A	5303298152		Trim, Frzr Shelf		Appelez-nous	-
41A	5303211351		Lock-rear Trim (non-illustrated)		Appelez-nous	-
42A	215002401		Hanger-deli Tray, Rh (non-illustrated)				$ 85.84
46A	215042004		Front, Storage Pan, Lower		Appelez-nous	-
47A	215530500		Insert-crisper Cvr, Plastic, White		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
