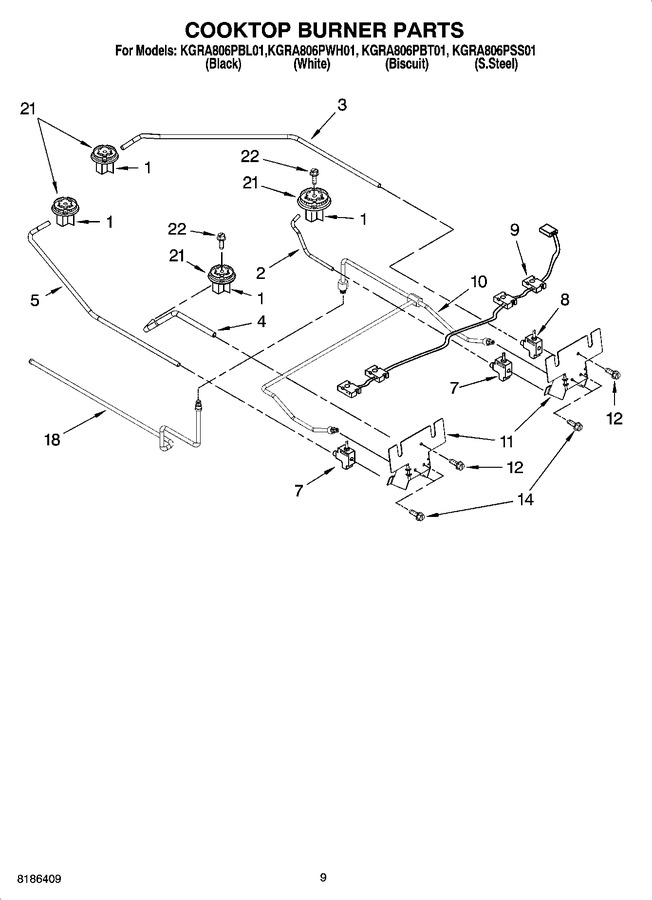

07 - Cooktop Burner Parts


08 - Triple Crown Burner, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9782447		Burner Base W/orifice (small (2))				$ 47.46
1	WPW10244714		Burner Base W/orifice (large)   (Replaces: 9782448)				$ 104.54
2	4453747		Tubing, Burner (rf)		Appelez-nous	-
3	4453748		Tubing, Burner (rr)		Appelez-nous	-
4	4453752		Tubing, Burner (lf)		Appelez-nous	-
5	4453749		Tubing, Burner (lr)		Appelez-nous	-
7	WP4456816		Valve, Burner Small (2)   (Replaces: 4456816)			Immediately	$ 286.55
8	WP4456817		Valve, Burner Large   (Replaces: 4456817)				$ 286.38
9	WP9756824		Spark Switch & Harness Assembly   (Replaces: 9756824)			Immediately	$ 161.92
10	4453755		Tube, Manifold		Appelez-nous	-
11	3179776		Screw		Appelez-nous	-
11	4453753		Manifold		Appelez-nous	-
12	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
14	8523704		Bolt, Valve (4)		Appelez-nous	-
18	4453754		Tubing Gds To Manifold				$ 208.86
21	9759894		Head, Burner (small)				$ 25.50
21	WP4455981		Head, Burner (large)   (Replaces: 4455981)			Immediately	$ 78.77
22	WP3368921		Screw, 7-18 X .750   (Replaces: 3368921)			Immediately	$ 6.42
