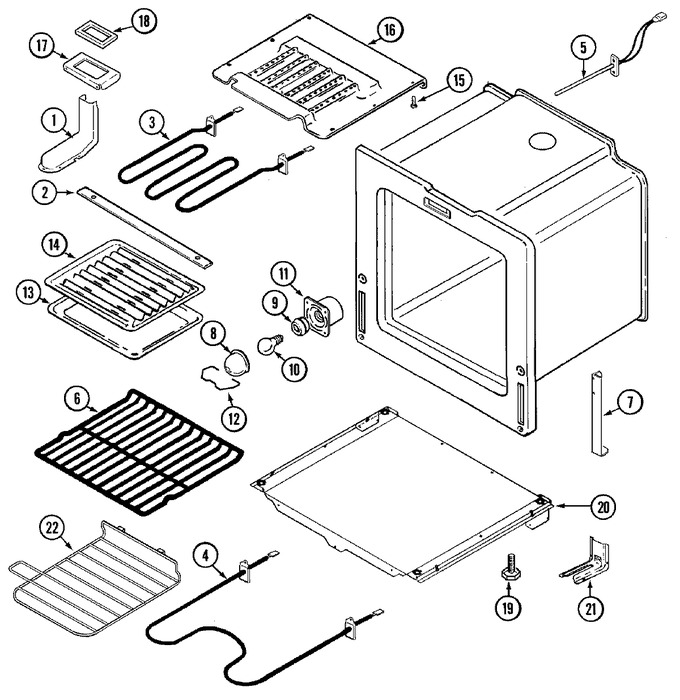

01 - Body
02 - Door
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004170 | Box, Vent | 10 |
|
- | ||||
| 2 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 2 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 3 | WP7406P218-60 | Element, Broil (6 Pass) (Replaces: 74003040) | 10 |
|
Immediately | $ 152.28 | |||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | WP74010750 | Element, Bake (Replaces: 74003039) | 10 |
|
Immediately | $ 47.69 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 12001656 | Sensor, Oven (long) (Replaces: 74003390) | 10 |
|
Immediately | $ 39.55 | |||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 74004171 | Support, Oven | 10 |
|
- | ||||
| 8 | 74003389 | Cover, Bulb | 10 |
|
- | ||||
| 9 | 74003387 | Receptacle, Bulb | 10 |
|
$ 5.84 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 11 | 74003388 | Housing, Bulb | 10 |
|
- | ||||
| 12 | 74003391 | Retainer, Bulb Cover | 10 |
|
- | ||||
| 13 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 14 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 3601F237-47 | Baffle, Broil | 10 |
|
- | ||||
| 17 | 74004178 | Plate, Vent | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 74004179 | Gasket, Vent | 10 |
|
- | ||||
| 19 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 20 | 74004225 | Bottom, Main | 10 |
|
- | ||||
| 21 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 26.33 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74002311) | 10 |
|
Immediately | $ 4.69 | |||
| 22 | 74003590 | Rack, Half (flush Conv. Cover) | 10 |
|
- |
