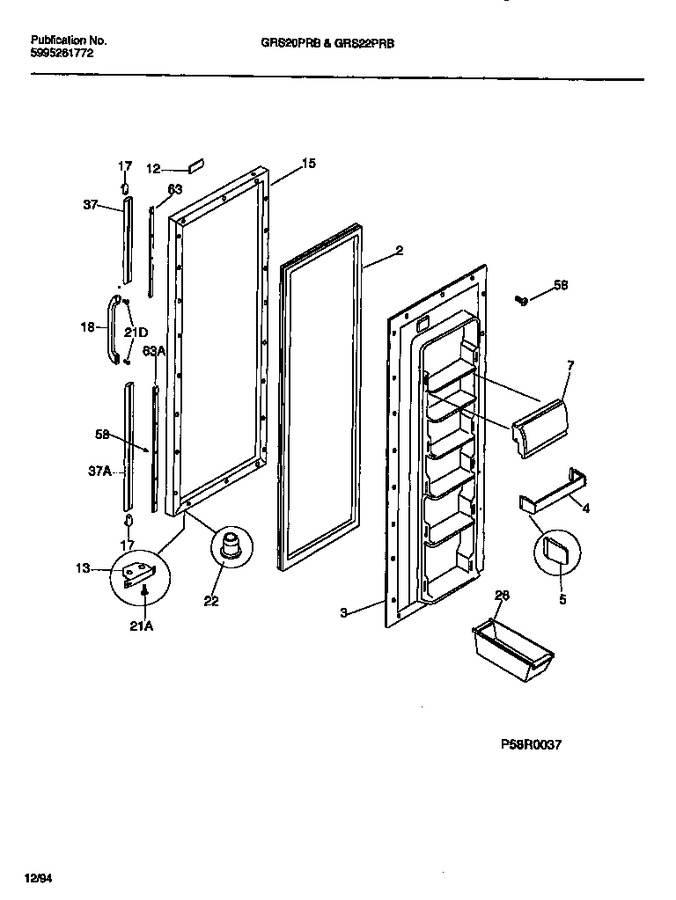

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215009801		Panel-inner Door,refr		Appelez-nous	-
4	215366052		Rack, Door		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029911		Door, Dairy		Appelez-nous	-
12	215731811		Nameplate Assy, Almond, W/mtg Tape		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215519911		Panel, Refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215484411		Handle End, Almond		Appelez-nous	-
18	215339611		Handle-door, Almond		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215481108		Trim-handle, 15.88``, Almond, Upper		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
*37562	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*37563	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
37A	215481110		Trim-handle, 31.46``, Almond, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-
