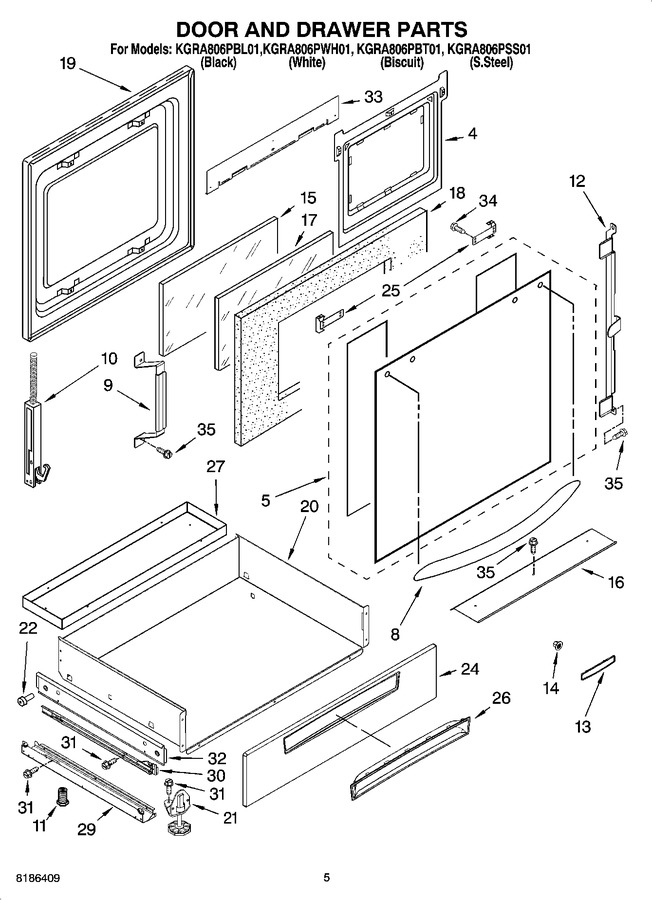

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 5 | 9757102WH | Glass, Door Front (white) |
|
- | |||||
| 5 | 9757102BL | Glass, Door Front (black) |
|
- | |||||
| 5 | 9757102BT | Glass, Door Front (biscuit) |
|
- | |||||
| 5 | 9757102SS | Glass, Door Front (s.steel) |
|
$ 486.36 | |||||
| 8 | 9756833OG | Handle, Door (architect Grip) |
|
- | |||||
| 8 | 9756833BT | Handle, Door (biscuit) |
|
- | |||||
| 8 | 9756833WH | Handle, Door (white) |
|
- | |||||
| 8 | 9756833BL | Handle, Door (black) |
|
- | |||||
| 9 | 8302094 | Bracket, Central |
|
- | |||||
| 10 | WP9760579 | Hinge, Door (orange Rh) (Replaces: 9760579) |
|
Immediately | $ 64.35 | ||||
| 10 | WP9760574 | Hinge, Door (orange Lh) (Replaces: 9760580) |
|
Immediately | $ 60.36 | ||||
| 11 | WPW10058460 | Foot, Rear (Replaces: 9761935) |
|
Immediately | $ 7.07 | ||||
| 12 | WP9759229 | Bracket, Side (Replaces: 8302092) |
|
$ 160.71 | |||||
| 13 | 9757730BT | Nameplate (biscuit) |
|
- | |||||
| 13 | 9757730BL | Nameplate (black) |
|
- | |||||
| 13 | 9757730WH | Nameplate (white) |
|
- | |||||
| 14 | 4453107 | Nut |
|
- | |||||
| 15 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 16 | 4457114 | Shield, Heat-bottom |
|
$ 186.68 | |||||
| 17 | WP4449263 | Glass, Inner (2) (Replaces: 4449263) |
|
Immediately | $ 151.10 | ||||
| 18 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 19 | WP9759413 | Liner, Door (Replaces: 9759413) |
|
$ 317.54 | |||||
| 20 | 9757806 | Drawer & Roller |
|
$ 182.02 | |||||
| 21 | WP3196037 | Foot, Front (Replaces: 3196037) |
|
$ 74.67 | |||||
| 22 | 814229 | Roller, Drawer (Replaces: 422604) |
|
Immediately | $ 51.23 | ||||
| 24 | 4453799BT | Front, Drawer (biscuit) |
|
- | |||||
| 24 | 4453799WH | Front, Drawer (white) |
|
- | |||||
| 24 | 4453799BL | Front, Drawer (black) |
|
- | |||||
| 24 | 4453799SS | Front, Drawer (s.steel) |
|
- | |||||
| 25 | 4457232 | Bracket, Handle (l.hand) |
|
- | |||||
| 25 | 4457231 | Bracket, Handle (r.hand) |
|
- | |||||
| 26 | 9756952CM | Handle, Drawer (cashmere Metalic) |
|
- | |||||
| 26 | 9756952BT | Handle, Drawer (biscuit) |
|
- | |||||
| 26 | 9756952BL | Handle, Drawer (black) |
|
- | |||||
| 26 | 9756952WH | Handle, Drawer (white) |
|
- | |||||
| 27 | 9760591 | Panel, Drawer |
|
- | |||||
| 29 | 9759953 | Side, Base (r.side) |
|
$ 108.70 | |||||
| 29 | 9759954 | Side, Base (l.side) |
|
$ 88.47 | |||||
| 30 | 9756839 | Track, Drawer (l.side) |
|
$ 44.69 | |||||
| 30 | 9756837 | Track, Drawer (r.side) |
|
- | |||||
| 31 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 32 | 9756673 | Guide, Roller |
|
$ 65.49 | |||||
| 33 | 9757707 | Shield, Heat Top |
|
- | |||||
| 34 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 35 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
