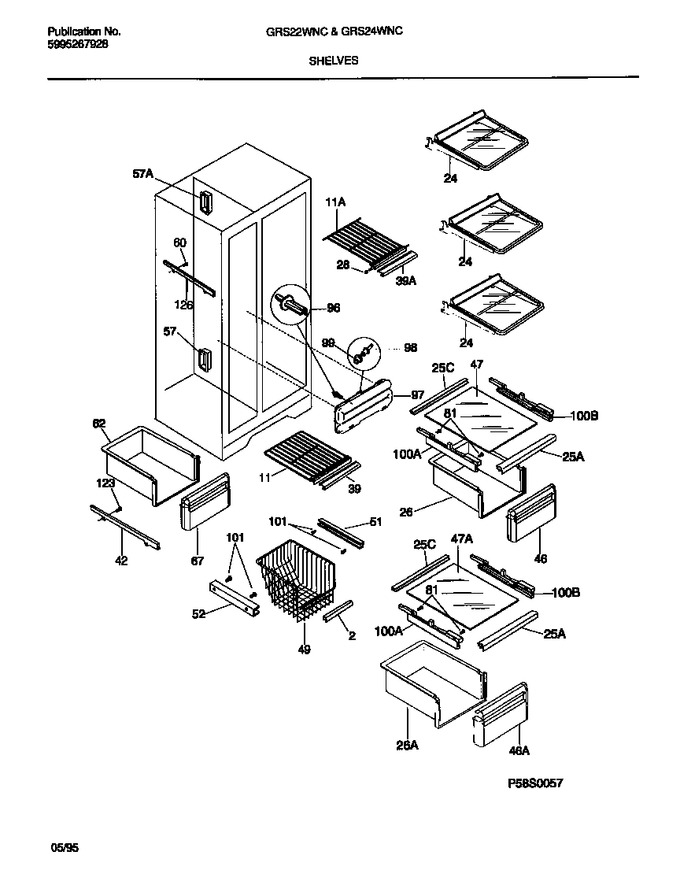

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303310333 | Trim-basket |
|
- | |||||
| 11 | 218298001 | Shelf, Freezer, Sliding, Wire |
|
- | |||||
| 11 | 5303289504 | Shelf-freezer, Fixed Wire |
|
- | |||||
| 24 | 215406116 | Shelf-``spill-safe``, Fixed, (3) |
|
- | |||||
| 25 | 218015302 | Trim-storage Pan Cvr, Snap-on, Front |
|
- | |||||
| 25 | 218015402 | Trim-storage Pan Cvr, Snap-on, Rear |
|
- | |||||
| 26 | 5303289500 | Pan-storage,upper |
|
$ 174.74 | |||||
| 26 | 5303289501 | Pan-storage,lower |
|
$ 164.85 | |||||
| 28 | 08013638 | End Cap-shelf, Protector |
|
- | |||||
| 39 | 218489604 | Trim-frzr Shelf |
|
- | |||||
| 39 | 218489605 | Trim-frzr Shelf |
|
- | |||||
| 46 | 215042032 | Front-storage Pan, Upper |
|
- | |||||
| 46 | 215042033 | Front-storage Pan, Lower |
|
$ 135.08 | |||||
| 47 | 215723552 | Insert-pan Cover, Glass, Clear |
|
$ 77.10 | |||||
| 47 | 218390567 | Insert-pan Cover, Glass, White Graphics |
|
- | |||||
| 49 | 5303289521 | Basket-sliding |
|
$ 239.40 | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 57 | 5303289064 | Ferrule-air |
|
- | |||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.00 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 62 | 5303289517 | Tray - Deli |
|
$ 133.19 | |||||
| 67 | 5303310341 | Front-deli Tray |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 96 | 215192600 | Support - Water Tank |
|
$ 10.71 | |||||
| 97 | 5303918258 | Water Tank Assy, Includes Tank, Grommets, Connectors (Replaces: 215230300) |
|
$ 121.63 | |||||
| 98 | 5308015614 | Connector - Tube |
|
$ 34.57 | |||||
| 99 | 5300186057 | Grommet-tank |
|
$ 28.98 | |||||
| 100 | 218015501 | Support-pan Cover, Lh |
|
$ 37.26 | |||||
| 100 | 218015601 | Support-pan Cover, Rh |
|
$ 55.18 | |||||
| 101 | 5304455650 | Screw-basket Hanger, Hex Washer Head, 8-18ab X 3/4 (Replaces: 215005000) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw-roller/hanger,8-10 X 7/16 (Replaces: 215005100) |
|
$ 14.89 | |||||
| *25286 | 5303310337 | Trim-storage Pan, (2) |
|
- | |||||
| *25287 | 5303310338 | Trim-deli Tray |
|
- | |||||
| *25288 | 215339900 | Clip, Cantilevr Shlf |
|
$ 5.83 | |||||
| *25289 | 218159700 | Spacer-shelf |
|
- | |||||
| 126A | 215205400 | Rail-auger Bucket,lh |
|
$ 64.00 | |||||
| 126B | 218232700 | Rail-auger Bucket, Rh (not Illustrated) |
|
$ 44.05 | |||||
| 42A | 215002301 | Hanger-pan / Tray, Lh |
|
$ 65.82 | |||||
| 42B | 215002401 | Hanger, Pan/tray, Rh (not Illustrated) |
|
$ 85.84 |
