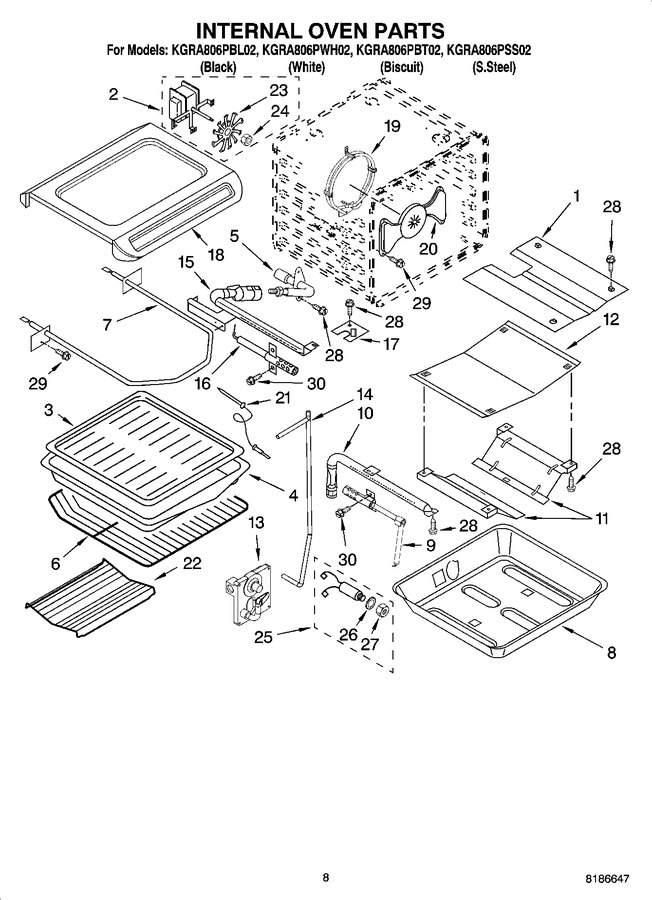

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752980		Shield, Flame				$ 38.26
2	4451583		Assy, Fan				$ 140.53
3	WP3195996		Grill, Broiler   (Replaces: 4457277)				$ 82.63
4	WP3196076		Pan, Broiler   (Replaces: 4457276)				$ 279.38
5	9757779		Fitting, Broiler				$ 130.68
6	WPW10179152		Rack, Oven   (Replaces: 4448717)			Immediately	$ 107.65
7	9760776		Element, Broil				$ 122.46
8	WPW10145744		Pan Support, Bake   (Replaces: 4453957)				$ 183.56
9	WP9760229		Electrode, Bake   (Replaces: 9760229)			Immediately	$ 139.47
10	WP9760228		Burner, Bake Log   (Replaces: 9760228)				$ 225.21
11	9752737		Shield, Oven				$ 22.04
12	4453984		Shield, Bake Flame		Appelez-nous	-
13	WP9763716		Valve, Assy   (Replaces: 9763716)			Immediately	$ 481.13
14	9756831		Tube, Broil				$ 155.53
15	9757700		Burner, Broil		Appelez-nous	-
16	WP8054129		Ignitor, Broil   (Replaces: 8054129)			Immediately	$ 123.43
17	4454009		Cover, Ignitor				$ 5.31
18	WPW10272546		Pan, Oven Bottom   (Replaces: 4453920)			Immediately	$ 190.73
19	9760777		Element, Convect				$ 245.83
20	9756689		Cover, Fan		Appelez-nous	-
21	WP9755542		Probe, Meat   (Replaces: 9755542)			Immediately	$ 82.91
22	3181534		Rack, Roasting		Appelez-nous	-
23	4452226		Blade, Fan				$ 30.89
24	4452227		Nut				$ 33.98
25	8186589		Jack, Meat Probe   (Replaces: 9755543)			Immediately	$ 97.22
26	WP9755547		Lockwasher   (Replaces: 9755547)				$ 5.49
27	WP9755546		Nut   (Replaces: 9755546)				$ 6.26
28	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	W11684507		Screw   (Replaces: 3196385)				$ 12.23
