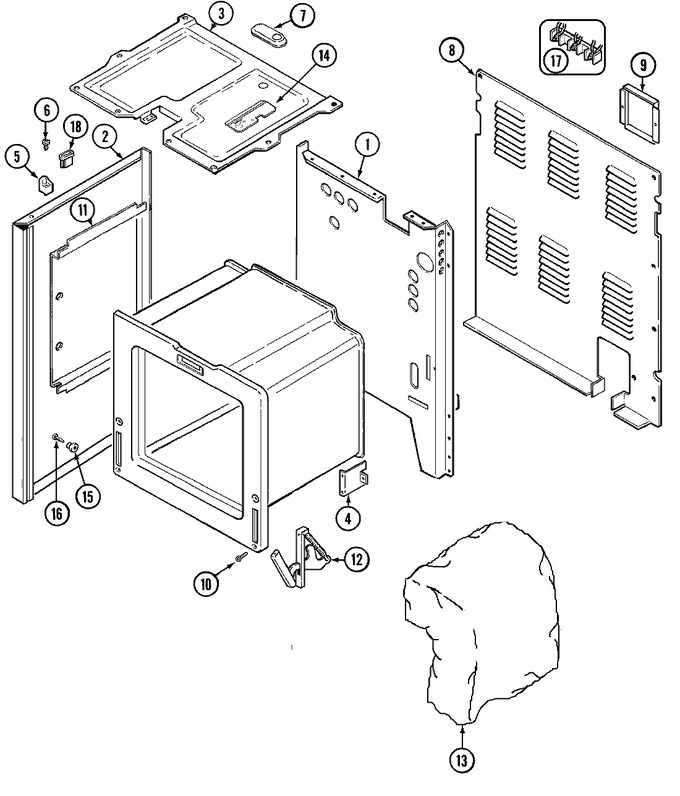

01 - Body
02 - Control Panel
03 - Door/drawer (agw)
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001772 | Back, Main | 10 |
|
- | ||||
| 1 | 74002334 | Shield, Wire | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74003236 | Panel, Side (wht) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 4011F239-19 | Box, Burner | 10 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 6 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 7 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 8 | 74003241 | Cover, Main Back Wire | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 10 | WP4159193 | Screw (Replaces: 7101P112-60) | 10 |
|
$ 4.29 | ||||
| 11 | 74003422 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 12 | W10876639 | Hinge, Door (Replaces: 74003239) | 10 |
|
$ 129.21 | ||||
| 13 | 4804F039-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 13 | 74003112 | Insulation, Wrap | 10 |
|
$ 65.68 | ||||
| 14 | 74001598 | Shield, Door Light Switch | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 16 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 16 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 17 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 17 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 10 |
|
Immediately | $ 6.47 | |||
| 17 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 18 | 74001256 | Bushing, Prop Support | 10 |
|
- |
