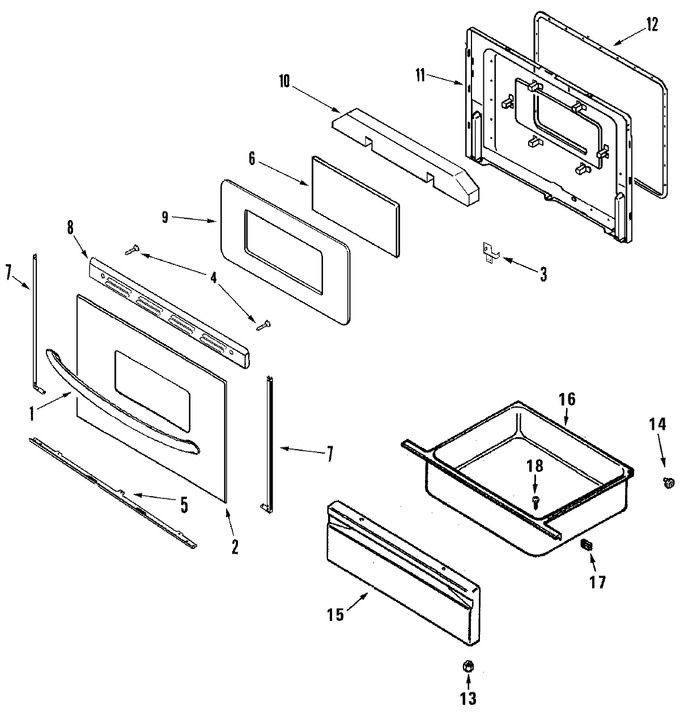

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011107		Handle, Door (bsq)	13	Appelez-nous	-
1	74009185		Handle, Door (bsq)	10	Appelez-nous	-
1	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
2	74009728		Glass, Door (outer-bsq)	10	Appelez-nous	-
3	3801F832-45		Bracket, Door Handle (lt)   (Replaces: 74009699)	10			$ 19.12
3	3801F831-45		Bracket, Door Handle (rt)   (Replaces: 74009698)	10			$ 19.17
4	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74009688		Support, Glass (bsq)	10	Appelez-nous	-
6	74002002		Glass, Inner	10			$ 62.17
7	74009696		Trim, Door (bsq-rt)	10	Appelez-nous	-
7	74009697		Trim, Door (bsq-lt)	10	Appelez-nous	-
7	WP74009014		Tape, Dbl Sided (wht)   (Replaces: 74009014)	10			$ 6.91
8	74009691		Trim, Door Top (bsq)	10	Appelez-nous	-
9	7101P209-60		Screw	10	Appelez-nous	-
9	74002461		Baffle, Door	10	Appelez-nous	-
10	74002458		Insulation, Door	10	Appelez-nous	-
11	74005097		Lining, Door	10	Appelez-nous	-
12	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
13	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
14	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
14	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
14	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
15	74005055		Panel, Drawer (bsq)	10	Appelez-nous	-
16	71003042		Drawer, Storage	10	Appelez-nous	-
17	74001663		Glide	10	Appelez-nous	-
18	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77

    View Diagram in Separate Window       Print Part List
