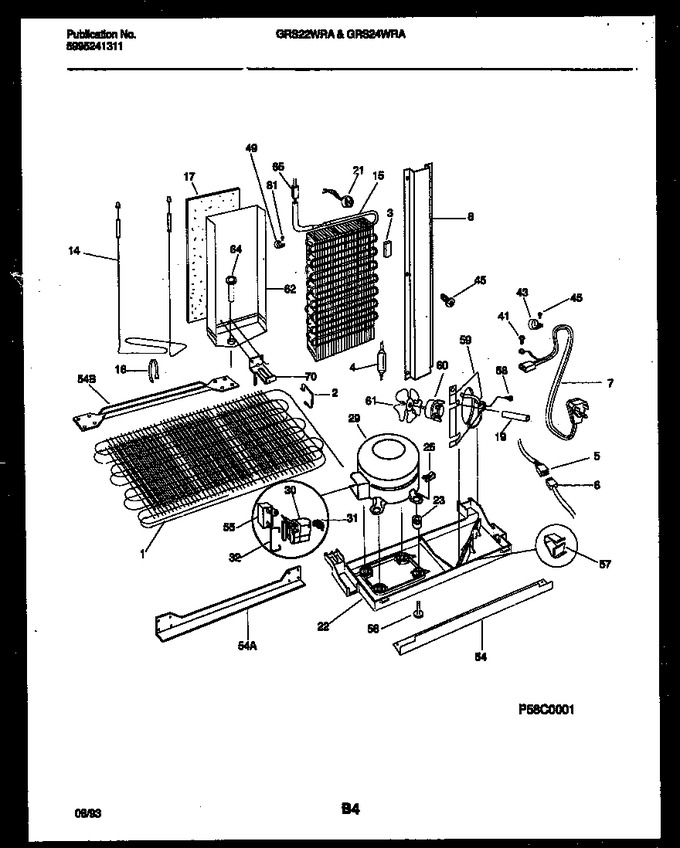

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	5303289032		Blade-cond Fan		Appelez-nous	-
62	215048700		Trough-drain,and Shield Assy		Appelez-nous	-
64	5303289063		Tube-drain		Appelez-nous	-
65	5303289301		Spacer-tube				$ 35.39
70	5303289041		Bracket-evap/cvr Mtg		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*59448	5303917166		Hot Tube Repair Kit, Service		Appelez-nous	-
61A	215004700		Nut, Speed (non-illustrated)				$ 3.78
61B	215223700		Grommet-silencer (non-illustrated)		Appelez-nous	-
