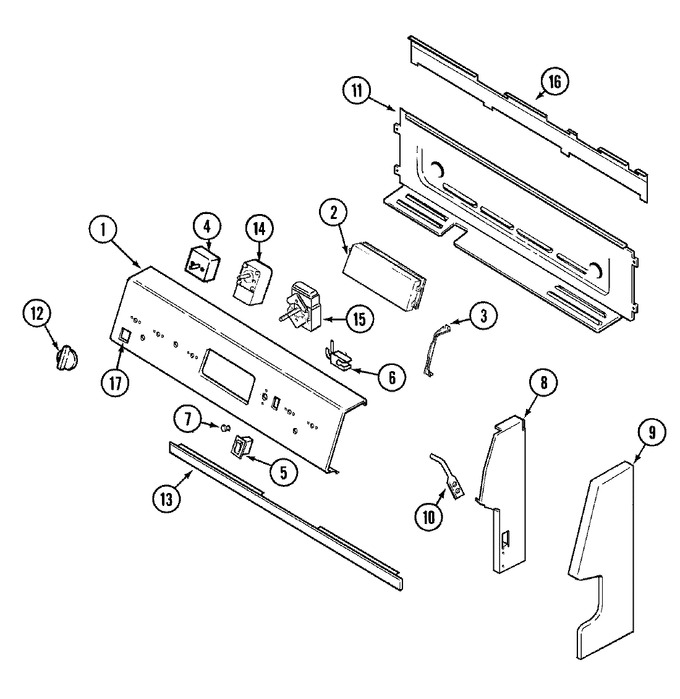

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003808 | Panel, Control (blk) | 11 |
|
- | ||||
| 2 | 74003810 | Clock (blk) | 11 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 11 |
|
$ 6.98 | ||||
| 3 | 74003602 | Bracket, Clock | 11 |
|
- | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 11 |
|
Immediately | $ 6.47 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 11 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 11 |
|
Immediately | $ 57.78 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 11 |
|
Immediately | $ 6.26 | |||
| 5 | 74003363 | Switch, Rocker (blk) | 11 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P101-60) | 11 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 11 |
|
$ 5.16 | ||||
| 8 | 74003604 | Support, Control Panel (lt) | 11 |
|
- | ||||
| 8 | 74003603 | Support, Control Panel (rt) | 11 |
|
- | ||||
| 9 | 74003605 | End Cap, Control Pnl (rt-blk) | 11 |
|
- | ||||
| 9 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 11 |
|
$ 15.94 | ||||
| 9 | 74002432 | Screw (1 3/16``-blk) | 11 |
|
- | ||||
| 9 | 74003606 | End Cap, Control Pnl (lt-blk) | 11 |
|
- | ||||
| 10 | 74003371 | Hinge, Main Top (rod) | 11 |
|
- | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 74003372 | Housing, Control Panel | 11 |
|
- | ||||
| 12 | 74003612 | Knob (blk) | 11 |
|
$ 16.42 | ||||
| 13 | 74003374 | Shield, Sight | 11 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 14 | WP7403P255-60 | Switch, Selector (Replaces: 74002929) | 11 |
|
$ 131.41 | ||||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 11 |
|
Immediately | $ 6.26 | |||
| 15 | 7101P280-60 | Screw W/washer (blk) | 11 |
|
- | ||||
| 15 | 74003708 | Thermostat, Oven | 11 |
|
- | ||||
| 16 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 16 | 74003614 | Extension, Control Panel | 11 |
|
- | ||||
| 17 | 71003070 | Breaker, Circuit (blk) | 11 |
|
- | ||||
| 17 | 71003068 | Receptacle, Outlet (blk) | 11 |
|
- | ||||
| 18 | 12001323 | Wire/terminal Kit | 11 |
|
- | ||||
| 19 | 74003728 | Manual, Use & Care (frch) | 11 |
|
- | ||||
| 19 | 74003616 | Manual, Use & Care | 11 |
|
- | ||||
| 20 | 16000327 | Guide, Quick Ref. - Maytag | 11 |
|
- |
