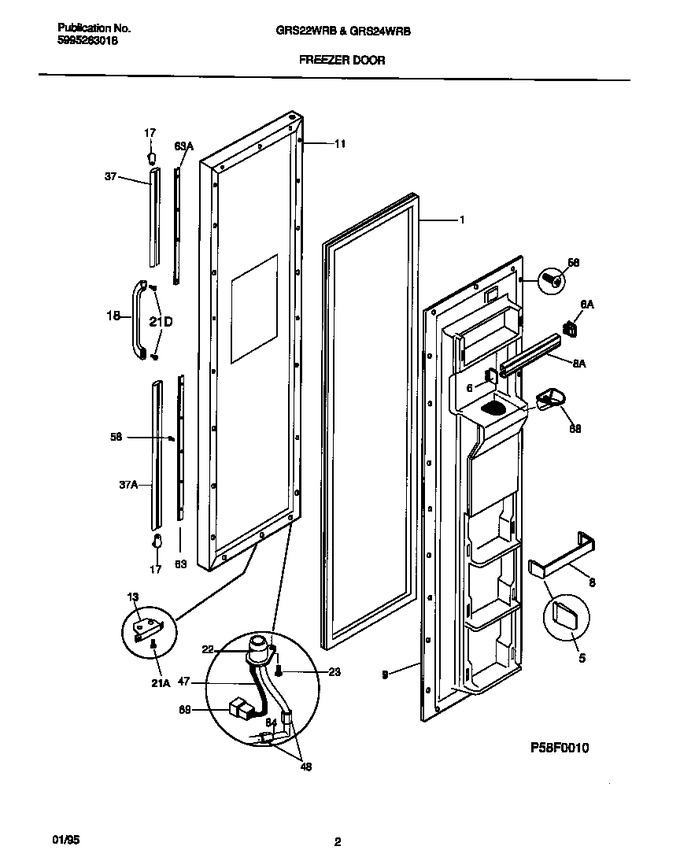

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734313 | Gasket-frzr Door, White, Magnetic |
|
$ 244.78 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 6 | 3206166 | Support-door Rack, Extends 1.06``, Lh |
|
Immediately | $ 9.93 | ||||
| 6 | 3206165 | Support-door Rack, Extends 1.06``, Rh |
|
Immediately | $ 8.19 | ||||
| 8 | 215366051 | Rack, Door |
|
- | |||||
| 8 | 5303300032 | Rack, Door |
|
- | |||||
| 9 | 215201501 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 215491101 | Panel-frzr Door, White, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 17 | 215100001 | Handle End, White |
|
- | |||||
| 18 | 215339601 | Handle-door, White |
|
- | |||||
| 21 | 215659600 | Screw-handle Mtg,hex Head, 10-32 X 1/2 |
|
- | |||||
| 21 | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 22 | 215615300 | Bushing-door,bronze |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 37 | 215117408 | Trim-handle, 15.88``, White, Upper |
|
- | |||||
| 37 | 215117410 | Trim-handle, 31.46``, White, Lower |
|
- | |||||
| 47 | 215294000 | Harness-wiring,frzr Door |
|
- | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 63 | 215117206 | Rail-handle Trim Mtg, Lower |
|
- | |||||
| 63 | 215117208 | Rail-handle Trim Mtg, Upper |
|
- | |||||
| 68 | 218036400 | Chute-ice |
|
- | |||||
| 69 | 215341900 | Connector-door Harn |
|
- | |||||
| 84 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| *48440 | 215598900 | Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt |
|
- | |||||
| *48441 | 215361200 | Foam Strip, Handle Mtg Hole |
|
- | |||||
| *48442 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
