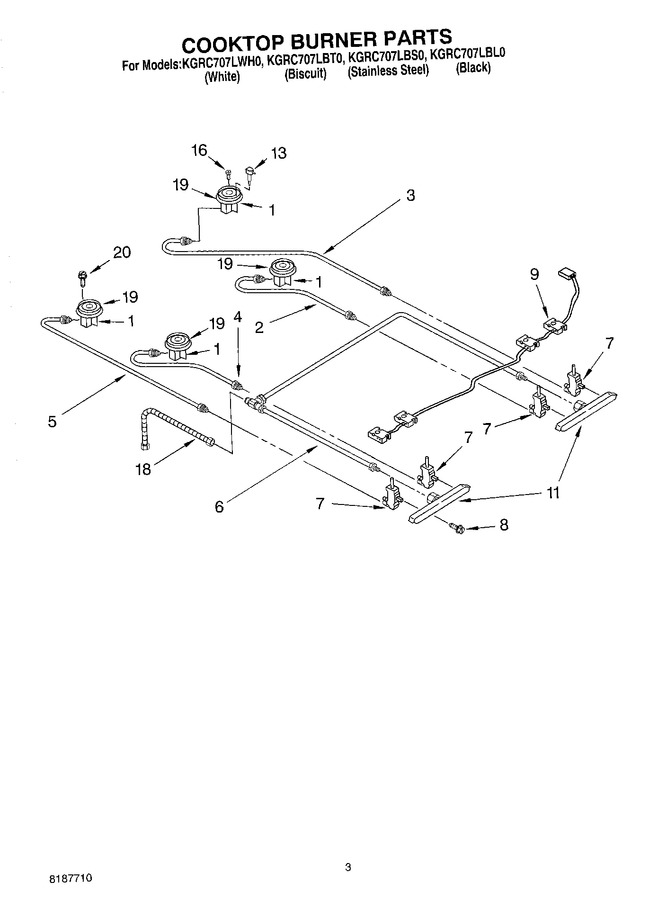

02 - Cooktop Burner Parts


03 - Control Panel Parts


04 - Door And Drawer Parts


05 - Oven Chassis Parts


06 - Broiler & Oven Burner Parts


07 - Oven Parts


08 - Rear Chassis Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10244714		Burner Base W/orifices (12k Rr)   (Replaces: 9782448)				$ 104.54
1	9782449		Burner Base W/orifices (14k Lf)		Appelez-nous	-
1	9782447		Burner Base W/orifices (6k Rf-lr)				$ 47.46
2	9753610		Tubing, Burner (rf)		Appelez-nous	-
3	9753611		Tubing, Burner (rr)		Appelez-nous	-
4	9753608		Tubing, Burner (lf)		Appelez-nous	-
5	9753609		Tubing, Burner (lr)		Appelez-nous	-
6	9754148		Tubing, Manifold		Appelez-nous	-
7	9755405		Valve, Burner (14k Lf Plain Stem)		Appelez-nous	-
7	9755344		Valve, Burner (12k Rr Black Stem)		Appelez-nous	-
7	9755345		Valve, Burner (6k Rf-lr Red Stem)		Appelez-nous	-
8	8523704		Bolt, Gas Valve (4)		Appelez-nous	-
9	WP9755451		Spark Switch & Harness Assembly   (Replaces: 9755451)			Immediately	$ 172.13
11	9782470		Manifold (left Hand)		Appelez-nous	-
11	9782471		Manifold (right Hand)		Appelez-nous	-
13	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
16	WP9753929		Orifice, Burner (14k Lf)   (Replaces: 9753929)				$ 72.63
16	9753928		Orifice, Burner (6k Rf-lr)				$ 38.86
18	9751854		Tubing, Flex		Appelez-nous	-
19	9754136		Head, Burner (pad, Burner Ring)				$ 20.15
19	4455849		Head, Burner (14k Lf)				$ 47.68
19	WP4455981		Head, Burner (12k Rr)   (Replaces: 4455981)			Immediately	$ 78.77
19	4455979		Head, Burner (6k Rf-lr)				$ 28.52
20	WPW10067840		Screw, 8-18 X 5/8   (Replaces: 8281147)				$ 6.98
