SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Functional Parts


05 - Wrapper And Body Parts

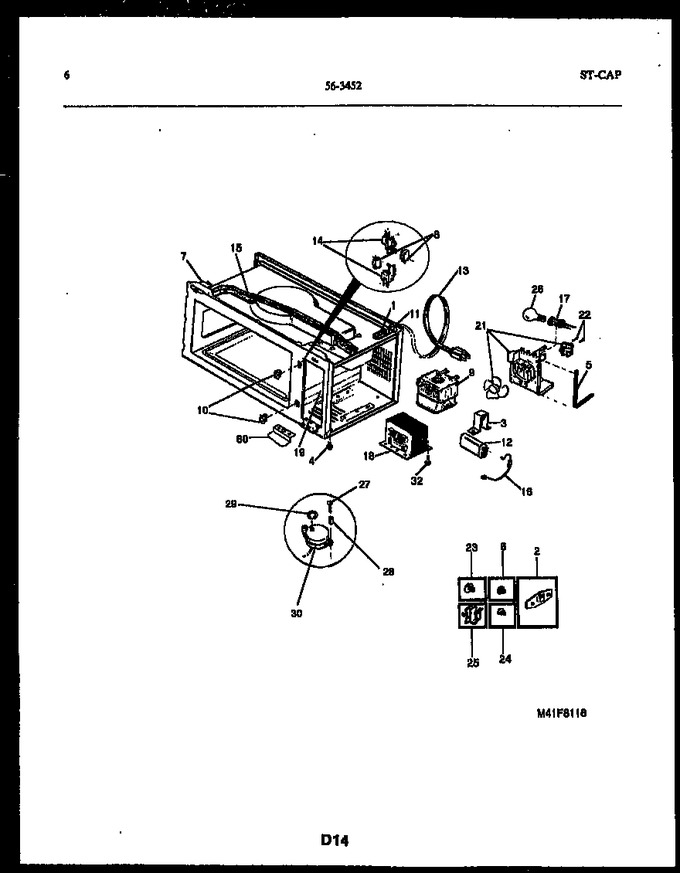

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303011670		Fuse, 20 Amp, 250 V		Appelez-nous	-
2	5303013626		Plug-button, Browner, (2)		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303014097		Spacer, Foot, (4)		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
7	5303201602		Switch, Monitor, Sensor		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303206781		Magnetron		Appelez-nous	-
10	5303212767		Bezel Latch (2)		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303212773		Capacitor		Appelez-nous	-
13	317005401		Cord-elec Service, 120 V		Appelez-nous	-
14	5303280317		Bracket, Switch, (2)		Appelez-nous	-
15	5303212783		Seal, Foam		Appelez-nous	-
16	5303212799		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket-light/lamp, Oven, 120 V		Appelez-nous	-
18	5303212811		Transformer, 120v		Appelez-nous	-
19	5303212845		Seal, Foam		Appelez-nous	-
21	5303922053		Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I		Appelez-nous	-
22	5308014502		Screw, 6, 32 X 1, 1/8, Fan Motor, (2)		Appelez-nous	-
23	5308037664		Plug, Button, White, Rack (4)		Appelez-nous	-
24	5308037665		Plug, Button, White, Tray, (2)		Appelez-nous	-
25	5303212787		Clamp, Cable		Appelez-nous	-
26	5303272172		Lamp, 25 W, 120 V		Appelez-nous	-
27	5303200767		Screw-turntable Mtr, 6-32 X 5/8, (2)		Appelez-nous	-
28	5303203151		Spacer-turntable Mtr, (2)		Appelez-nous	-
29	5303203152		Washer, Turntable Mtr, Place Between Mtr & Oven Btm		Appelez-nous	-
30	317005501		Motor-turntable, 120 V		Appelez-nous	-
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2)		Appelez-nous	-
60	5303283612		Bracket, Angle, Front Right Btm		Appelez-nous	-
*78553	5303273071		Harness-wiring, Main		Appelez-nous	-
*78553	5303017863		Screw, Cr Truss Head, 6-18(a) X 1/2, Angle Bracket, (2)		Appelez-nous	-
22A	5303013273		Nut, Hex, 6-32 (non-illustrated)		Appelez-nous	-
22B	5308010077		Clip-purselock, Fan Duct (non-illustrated)		Appelez-nous	-
30A	5303279402		Harness-wiring, Turntable (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
