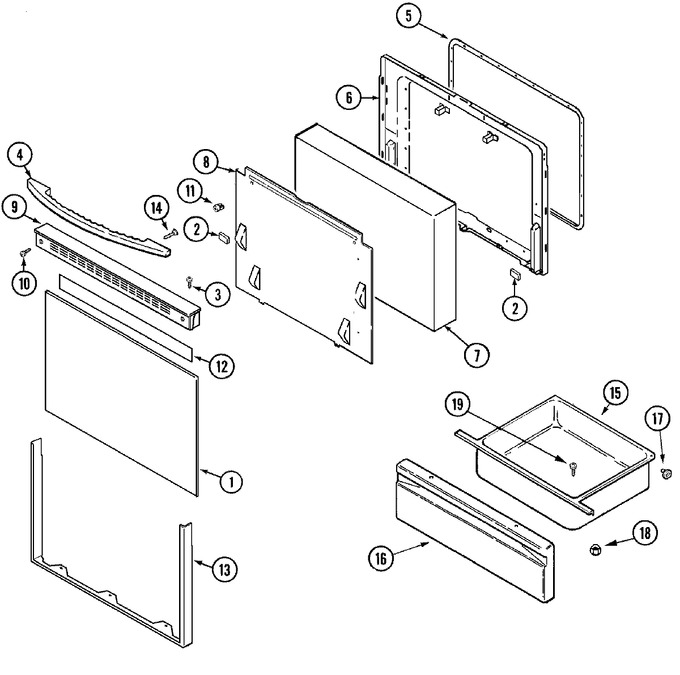

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003951		Glass, Door (outer-wht)	10	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
3	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
4	74006381		Handle, Door (wht)	10			$ 82.26
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
6	74003245		Lining, Door	10	Appelez-nous	-
7	74001842		Insulation, Door	10	Appelez-nous	-
8	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
9	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
9	74003864		Trim, Top Door (wht)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	7103P045-60		Nut, Nylon	10	Appelez-nous	-
12	8270P078-60		Tape, Foil (29 1/2``)	10	Appelez-nous	-
13	7706P310-60		Frame, Door (wht)	10	Appelez-nous	-
13	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
14	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
15	74003433		Drawer, Storage	10	Appelez-nous	-
16	74003399		Panel, Drawer (wht)	10	Appelez-nous	-
17	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
17	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
18	74005230		Nut, Lock (8-32)	10			$ 12.02
19	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
