Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4453936BL Control Panel (black) Special Order $ 179.21

1 4453936SS Control Panel (s.steel) Special Order $ 132.96

1 4453936WH Control Panel (white) Special Order $ 135.45

2 9756555WH Membrane Switch (white) Appelez-nous -
2 9756555BL Membrane Switch (black) Appelez-nous -
3 9762810 Control, Migration Special Order $ 454.20

4 9757119 Bracket, Console Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 9757787 Bracket, User Interface Appelez-nous -
7 WP486579 Screw   (Replaces: 311865) Special Order $ 6.61

8 4453880BL Endcap (black Lh) Appelez-nous -
8 4453884CM Endcap (s.steel Rh) Appelez-nous -
8 4453884WH Endcap (white Rh) Appelez-nous -
8 4453884BL Endcap (black Rh) Appelez-nous -
8 4453880WH Endcap (white Lh) Appelez-nous -
8 4453880CM Endcap (s.steel Lh) Appelez-nous -
9 8285604 Knob (silver) Special Order $ 6.23

9 4453911BL Knob (black) Appelez-nous -
9 4453911WH Knob (white) Special Order $ 5.52

10 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 354.47

12 3196172 Screw In-Stock Immediately $ 11.55

13 9759827 Insert, Mambrane Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

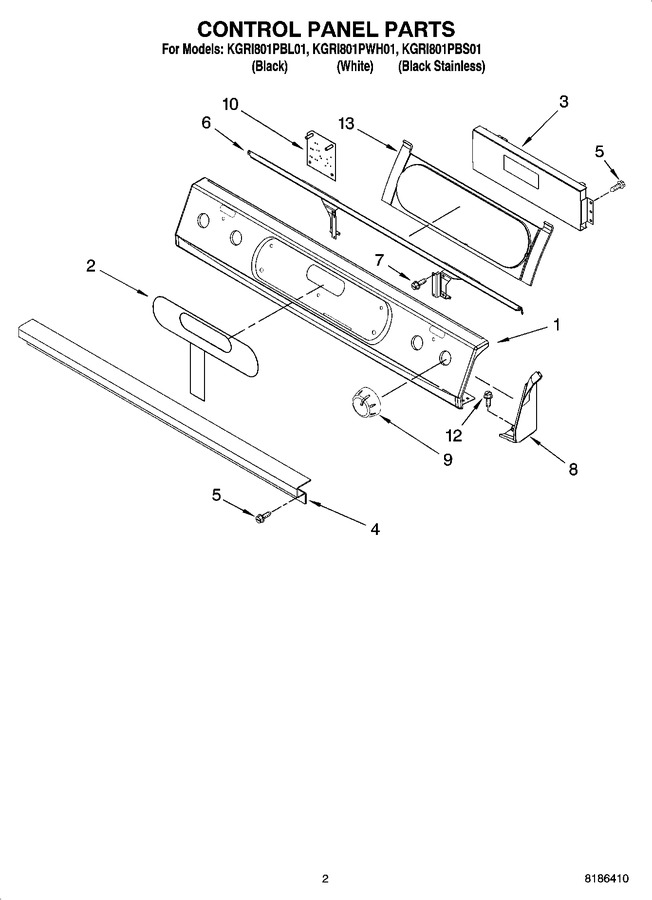

Diagram for KGRI801PWH01
