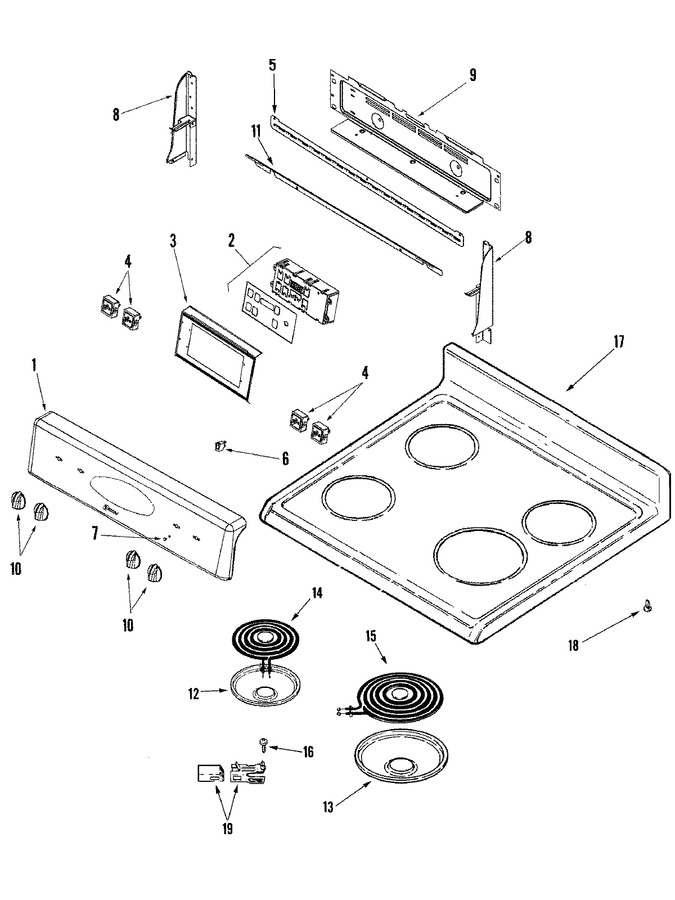

02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010932 | Panel, Backguard (bsq) | 10 |
|
- | ||||
| 2 | 5701M760-60 | Clock W/overlay (bsq) (Replaces: 74009706) | 10 |
|
$ 379.39 | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | WP74009541 | Screw (bsq) (Replaces: 74009541) | 10 |
|
$ 6.26 | ||||
| 8 | 74010712 | Support, Backguard (lt-bsq) | 10 |
|
- | ||||
| 8 | 74010714 | Support, Backguard (rt-bsq) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74010935 | Cover, Rear Wire | 10 |
|
- | ||||
| 10 | 74009189 | Knob (bsq) | 10 |
|
- | ||||
| 11 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 12 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 13 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 14 | WP660532 | Element, Surface (6``-4t) (Replaces: 74007161) | 10 |
|
Immediately | $ 36.90 | |||
| 15 | WP3191454 | Element, Surface (8``-5t) (Replaces: 74007160) | 10 |
|
$ 163.63 | ||||
| 16 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 17 | 74010346 | Top, Main (bsq) | 10 |
|
- | ||||
| 18 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 19 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 |
