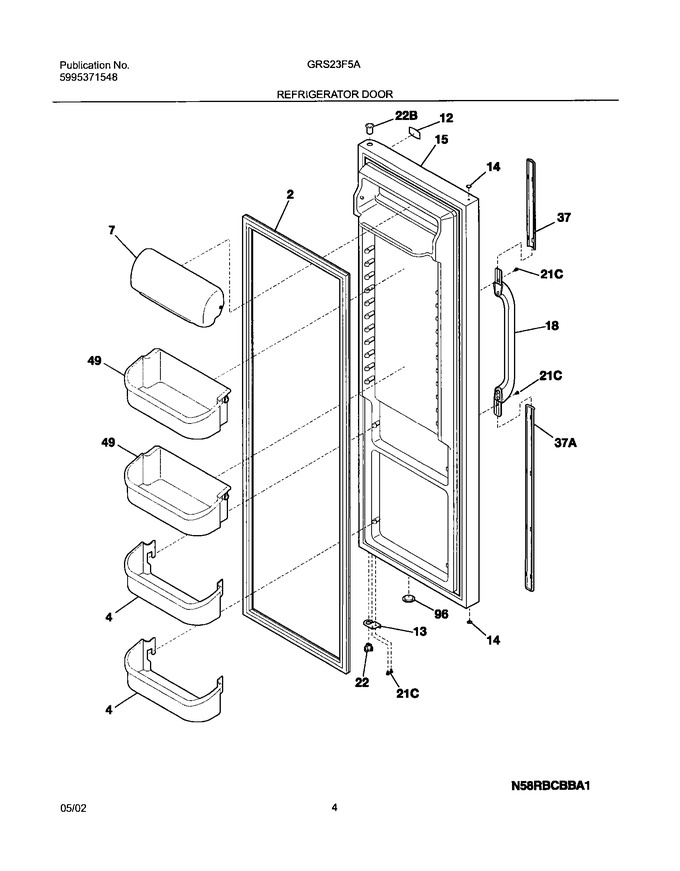

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363701 | Bin-door,2-liter |
|
Immediately | $ 59.42 | ||||
| 7 | 240338309 | Door-dairy |
|
- | |||||
| 12 | 240422301 | Label-nameplate,white |
|
$ 4.87 | |||||
| 13 | 5303918455 | Door Stop,white,ref (Replaces: 240537101) |
|
$ 142.04 | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 15 | 240451926 | Door-refr,white ,complete Assy |
|
- | |||||
| 18 | 218668401 | Handle-door, White |
|
$ 74.97 | |||||
| 22 | 240328201 | Bearing-hinge,closer |
|
Immediately | $ 17.72 | ||||
| 37 | 215867083 | Trim-handle, White, Upper, With Snap Lock |
|
$ 73.07 | |||||
| 49 | 240324501 | Bin-door,gallon (Replaces: 240324506) |
|
Immediately | $ 69.06 | ||||
| 96 | 240345505 | Plug,door Foam Hole ,white |
|
$ 12.90 | |||||
| 21C | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22B | 240328401 | Bearing-hinge,upper |
|
$ 12.97 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37A | 215867082 | Trim-handle, White, Lower, With Snap Locks |
|
$ 78.21 | |||||
| F2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 240390603) |
|
Immediately | $ 94.66 |
