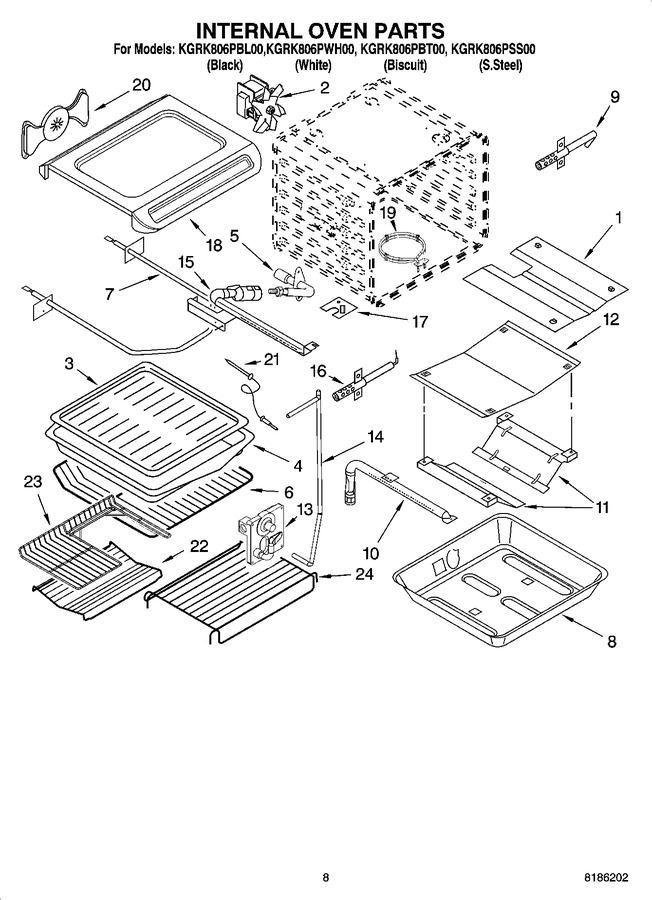

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752980 | Shield, Flame |
|
$ 38.26 | |||||
| 1 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 2 | 4451583 | Assy, Fan |
|
$ 140.53 | |||||
| 3 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 82.63 | |||||
| 4 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 279.38 | |||||
| 5 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 5 | 9757779 | Fitting, Broiler |
|
$ 130.68 | |||||
| 6 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 107.65 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 7 | 4453625 | Element, Broil |
|
- | |||||
| 8 | WPW10145744 | Pan Support, Bake (Replaces: 4453957) |
|
$ 183.56 | |||||
| 9 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 9 | 8191123 | Electrode, Bake (Replaces: 4454048) |
|
$ 238.90 | |||||
| 10 | 8191123 | Burner, Bake Log (Replaces: 4454047) |
|
$ 238.90 | |||||
| 10 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 11 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 11 | 9752737 | Shield, Oven |
|
$ 22.04 | |||||
| 12 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 12 | 4453984 | Shield, Bake Flame |
|
- | |||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 13 | WP9763716 | Valve, Assy (Replaces: 4453999) |
|
Immediately | $ 481.13 | ||||
| 14 | 9756831 | Tube, Broil |
|
$ 155.53 | |||||
| 15 | 9757700 | Burner, Broil |
|
- | |||||
| 16 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 16 | WP8054129 | Ignitor, Broil (Replaces: 8054129) |
|
Immediately | $ 123.43 | ||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 17 | 4454009 | Cover, Ignitor |
|
$ 5.31 | |||||
| 18 | WPW10272546 | Pan, Oven Bottom (Replaces: 4453920) |
|
Immediately | $ 190.73 | ||||
| 19 | 9760777 | Element, Convect (Replaces: 4453650) |
|
$ 245.83 | |||||
| 19 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 20 | 9756689 | Cover, Fan |
|
- | |||||
| 20 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 21 | 8186589 | Probe, Meat (Replaces: 4451355) |
|
Immediately | $ 97.22 | ||||
| 22 | 3181534 | Rack, Roasting |
|
- | |||||
| 23 | 9759681 | Rack, Half |
|
- | |||||
| 24 | WP8274022 | Rack, Insert (Replaces: 8274022) |
|
$ 123.77 |
