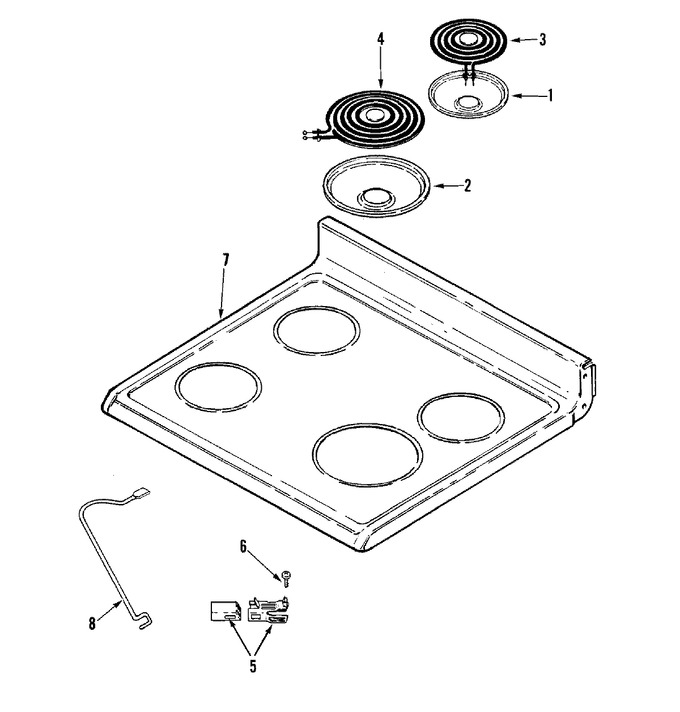

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291024 | Bowl, Drip (6`` Gry-solid) (Replaces: 74003440) | 10 |
|
Immediately | $ 49.90 | |||
| 1 | W10291024 | Bowl, Drip (6`` Gry-w/hole) (Replaces: 74003439) | 10 |
|
Immediately | $ 49.90 | |||
| 2 | W10291024 | Bowl, Drip (8`` Gry-solid) (Replaces: 74003441) | 10 |
|
Immediately | $ 49.90 | |||
| 3 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 13 |
|
Immediately | $ 112.28 | |||
| 3 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 10 |
|
$ 141.24 | ||||
| 4 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 13 |
|
Immediately | $ 165.96 | |||
| 4 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 10 |
|
$ 172.17 | ||||
| 5 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 74003428 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | 74004084 | Prop Rod | 10 |
|
- |
