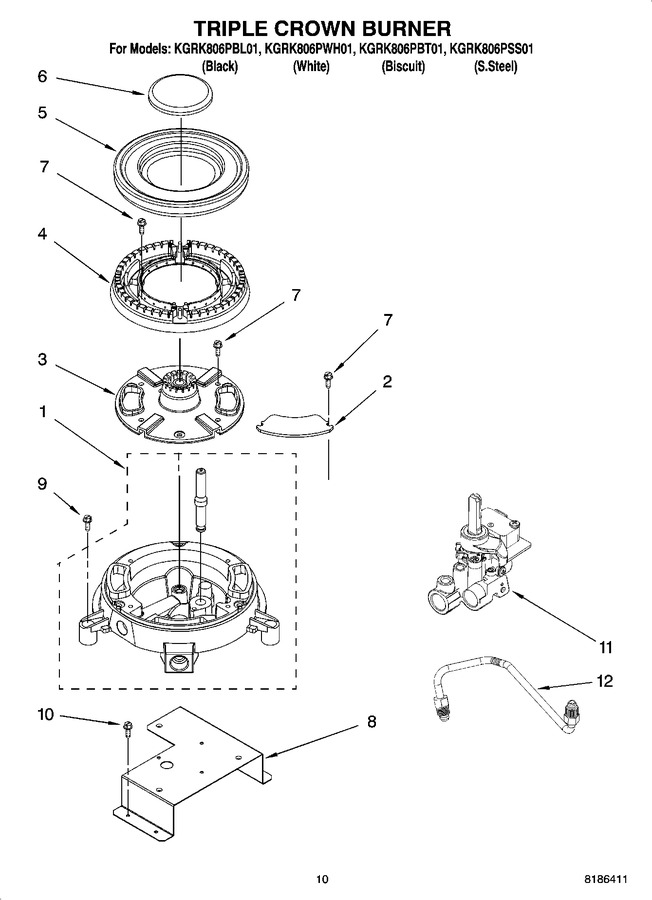

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9756816		Burner Assy., Triple Crown Brnr		Appelez-nous	-
2	8285250		Plate, Closure				$ 7.51
3	WP8285255		Internal Head, Triple Crown Brnr   (Replaces: 8285255)			Immediately	$ 119.12
4	WP8285256		External Head, Triple Crown Brnr   (Replaces: 8285256)				$ 121.97
5	8285258BL		Cap, Burner Ext. (black)		Appelez-nous	-
5	8285258		Cap, Burner Ext. (matte Black)				$ 54.26
5	8285258MG		Cap, Burner Ext. (mouse Gray)		Appelez-nous	-
5	8285258MS		Cap, Burner Ext. (moleskin)		Appelez-nous	-
6	9758829BL		Cap, Burner Int. (black)				$ 52.57
6	9758829MG		Cap, Burner Int. (mouse Gray)				$ 70.68
6	9758829MS		Cap, Burner Int. (moleskin)		Appelez-nous	-
6	WP9758829CB		Cap, Burner Int. (coal Matte Black)   (Replaces: 9758829CB)				$ 48.51
7	WP3400702		Screw   (Replaces: 3400702)				$ 11.22
8	8285177		Bracket, Triple Crown Burner		Appelez-nous	-
9	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
10	WP3400702		Screw   (Replaces: 3400702)				$ 11.22
11	9760519		Valve, T.c.b.				$ 149.60
12	4453751		Tube, T.c.b. Gas		Appelez-nous	-
