SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

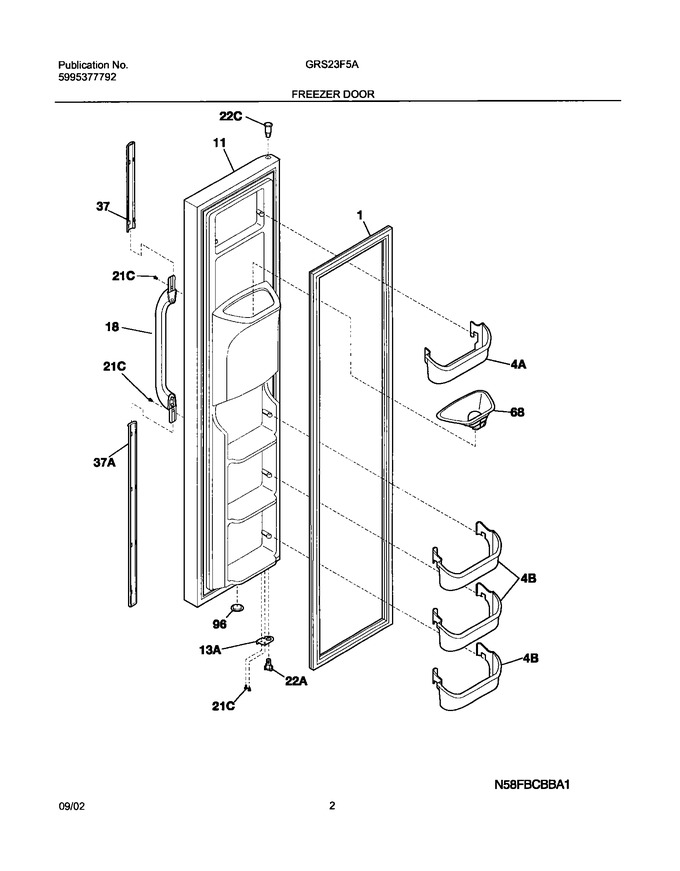

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786016		Gasket-frzr Door,white   (Replaces: 240390604)				$ 93.12
11	240451843		Door-frzr,white ,complete Assy		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
68	240465801		Chute-ice		Appelez-nous	-
96	240345505		Plug,door Foam Hole ,white				$ 12.90
13A	5303918455		Door Stop,white,frzr   (Replaces: 240537102)				$ 142.04
21C	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,upper				$ 19.85
37A	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
4A	240367301		Bin-door,frzr-upper			Immediately	$ 44.68
4B	240359001		Bin-door			Immediately	$ 68.11
NI	240545201		Connector-water,straight   (Replaces: 240545101)				$ 73.71
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 85.69
NI	5303918256		Dispenser Heater Kit				$ 474.16

    View Diagram in Separate Window       Print Part List
