01 - Body

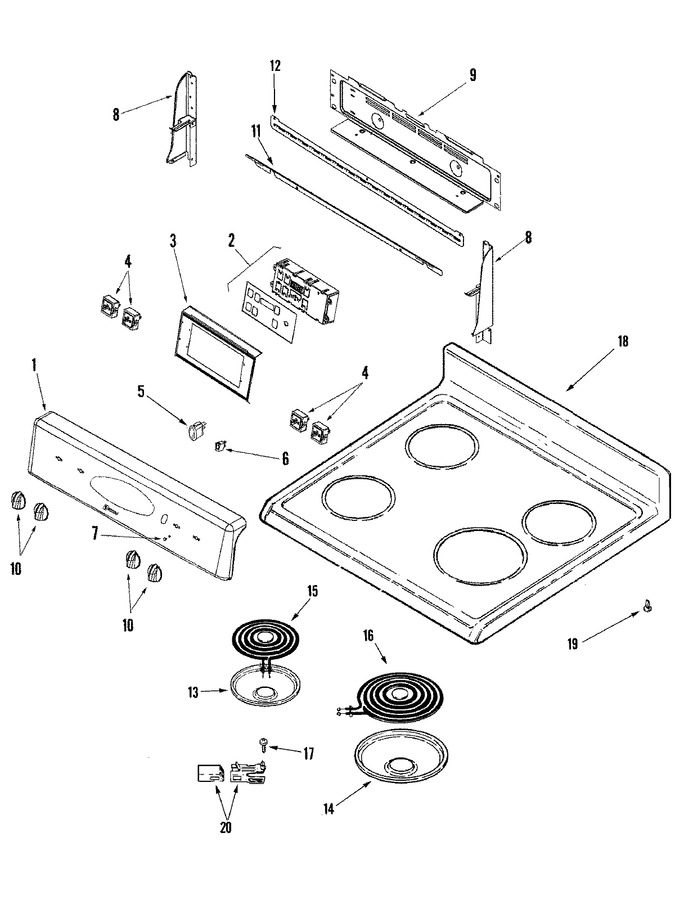

02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009051 | Panel, Backguard (blk) | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 2 | 5701M760-60 | Clock W/overlay (blk) (Replaces: 74009707) | 10 |
|
$ 379.39 | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | 7403P985-60 | Switch, Rocker (blk) (Replaces: 74008937) | 10 |
|
$ 82.20 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74010201 | Support, Backguard (rt-blk) | 10 |
|
- | ||||
| 8 | 74010202 | Support, Backguard (lt-blk) | 10 |
|
- | ||||
| 8 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74010935 | Cover, Rear Wire | 10 |
|
- | ||||
| 10 | 74009187 | Knob (blk) | 10 |
|
$ 19.89 | ||||
| 11 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 12 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | W10290353RW | Bowl, Drip (6`` Blk) (Replaces: Y04100392) | 10 |
|
Immediately | $ 19.27 | |||
| 14 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 10 |
|
Immediately | $ 15.25 | |||
| 15 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 16 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 17 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 18 | 74003582 | Top, Main (blk) | 10 |
|
- | ||||
| 19 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 20 | WP74007474 | Receptacle Assy (Replaces: 74007474) | 10 |
|
Immediately | $ 129.78 |
