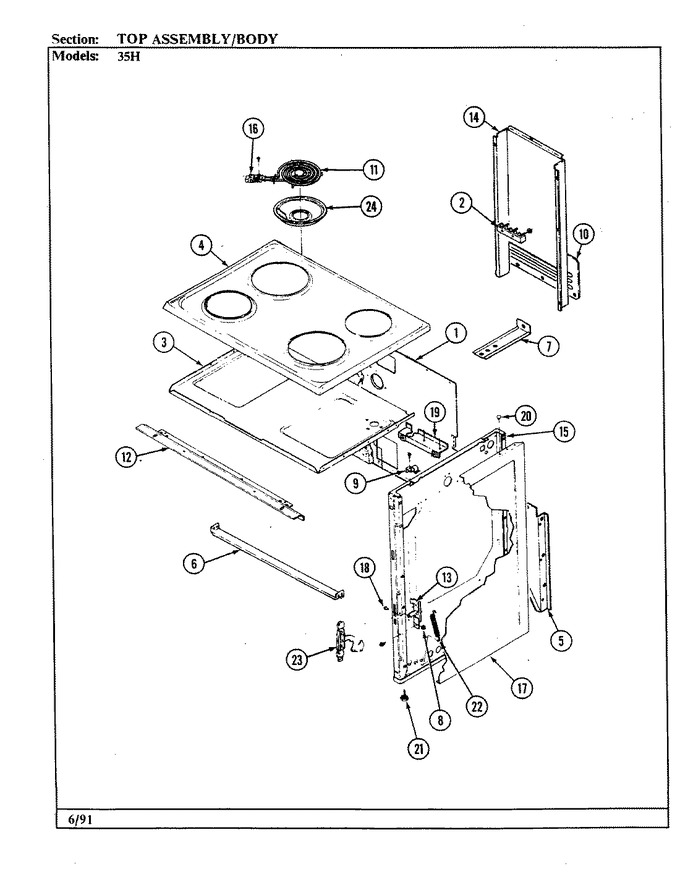

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F160-80 | Back, Main | 01 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 4011F128-23 | Bottom, Burner Box | 01 |
|
- | ||||
| 4 | 2002W028-81 | Top, Main (white) | 01 |
|
- | ||||
| 5 | 3802F010-80 | Brace, Back-right | 01 |
|
- | ||||
| 5 | 3802F008-80 | Brace, Back-left | 01 |
|
- | ||||
| 6 | 3802F029-80 | Brace, Main Top | 01 |
|
- | ||||
| 6 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 7 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 8 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 9 | 7112P073-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 10 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 10 | 4005F016-80 | Cover, Back Burner Box | 01 |
|
- | ||||
| 10 | 4005F362-51 | Cover Access | 01 |
|
- | ||||
| 11 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 01 |
|
$ 88.70 | ||||
| 11 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 01 |
|
$ 160.60 | ||||
| 12 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 12 | 4012F022-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 13 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 13 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 13 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 14 | 4001F051-80 | Housing Main Wire | 01 |
|
- | ||||
| 15 | 4009W053-80 | Lining, Inner Side | 01 |
|
- | ||||
| 16 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 16 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 01 |
|
Immediately | $ 14.48 | |||
| 16 | 7112P026-60 | Clip, Unit Block | 01 |
|
- | ||||
| 17 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 18 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 19 | 3605F146-51 | Plate, Conduit Reinforcement | 01 |
|
$ 6.06 | ||||
| 19 | 3605F156-51 | Plate,conduit | 01 |
|
- | ||||
| 20 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 20 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 21 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 21 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 22 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 23 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 24 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 01 |
|
Immediately | $ 15.56 | |||
| 24 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 01 |
|
Immediately | $ 12.05 |
