01 - Cooktop Parts

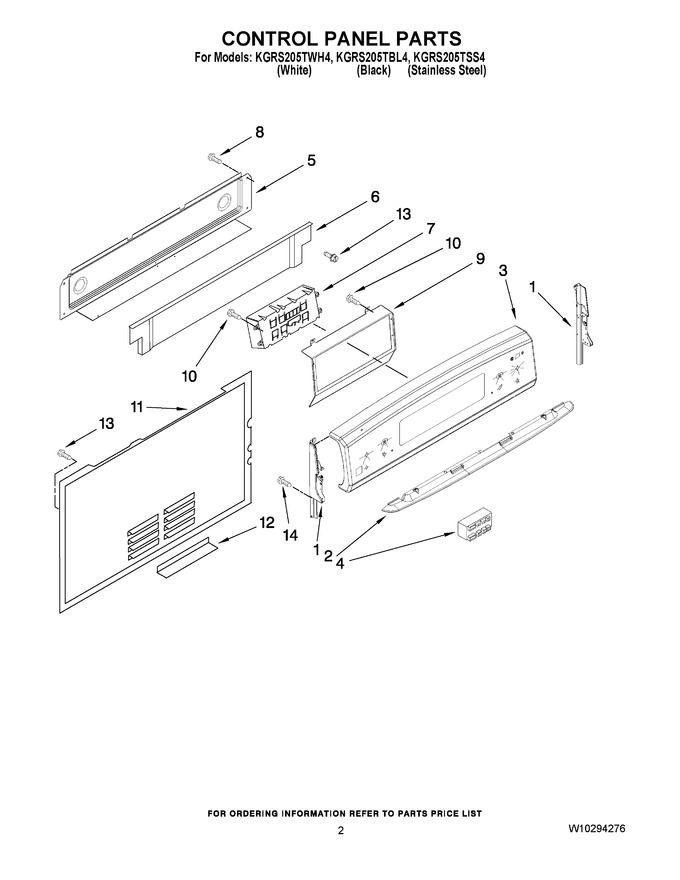

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F703-70 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3807F703-71 | Endcap, Left Hand (white) |
|
- | |||||
| 1 | 3807F702-70 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3807F702-71 | Endcap, Right Hand (white) |
|
- | |||||
| 2 | 3604F382-09 | Heat Shield,visor (black) |
|
$ 50.83 | |||||
| 2 | 3604F382-81 | Heat Shield,visor (white) |
|
$ 32.49 | |||||
| 3 | WPW10160634 | Panel, Backguard & Switch Assy (s.steel) (Replaces: W10218264) |
|
$ 279.82 | |||||
| 3 | WPW10160634 | Panel, Backguard & Switch Assy (black) (Replaces: W10218262) |
|
$ 279.82 | |||||
| 3 | WPW10160634 | Panel, Backguard & Switch Assy (white) (Replaces: W10218265) |
|
$ 279.82 | |||||
| 4 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 305.10 | |||||
| 5 | 4005F804-51 | Cover, Upper |
|
$ 30.01 | |||||
| 6 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 7 | 8507P351-60 | Control |
|
$ 336.57 | |||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 9 | 3801F945-51 | Bracket, Control |
|
$ 53.75 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 11 | W10243047 | Cover, Main Wire |
|
- | |||||
| 12 | 4005P704-51 | Bottom, Wire Cover |
|
$ 7.07 | |||||
| 13 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 |
