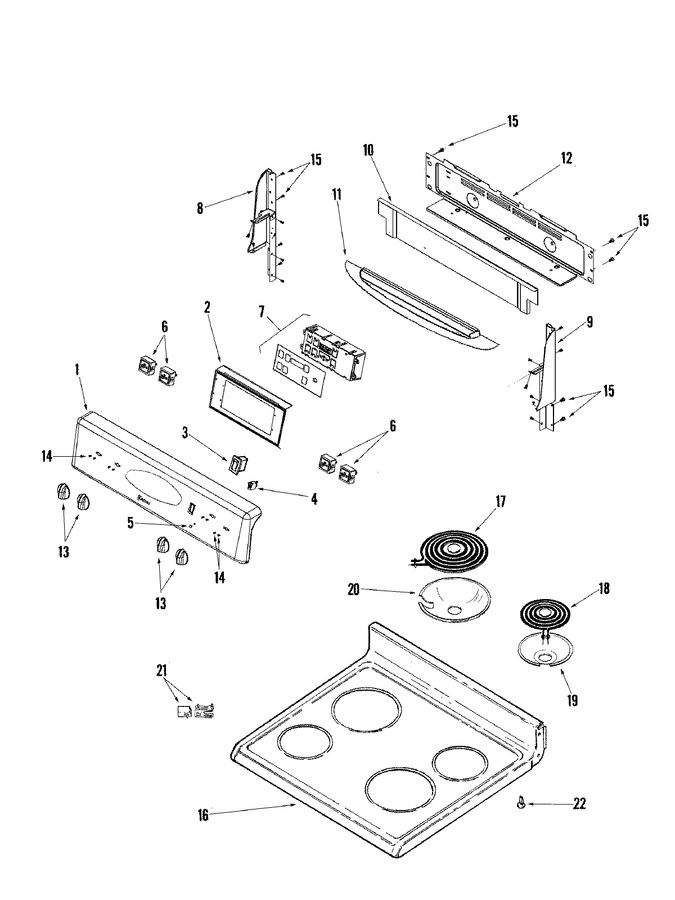

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009050		Panel, Backguard (bsq)	10	Appelez-nous	-
2	74009052		Bracket, Clock	10	Appelez-nous	-
3	74008939		Switch, Rocker (bsq)	10	Appelez-nous	-
4	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
6	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
7	74009212		Clock/overlay (bsq)	12			$ 302.13
7	74008646		Clock/overlay (bsq)	10	Appelez-nous	-
8	74008721		End Cap (lt-bsq)	10	Appelez-nous	-
9	74008724		End Cap (rt-bsq)	10	Appelez-nous	-
10	74008727		Shield, Vent (bsq)	10	Appelez-nous	-
10	74009207		Shield, Vent (bsq)	13	Appelez-nous	-
11	74009204		Shield, Heat Visor (bsq)	13			$ 38.28
11	74008729		Shield, Heat Visor (bsq)	10	Appelez-nous	-
12	74009053		Cover, Backguard Wire	10	Appelez-nous	-
13	74008946		Knob (bsq/chr)	10			$ 17.30
14	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74008738		Top, Main (bsq)	10	Appelez-nous	-
17	WPW10345410		Element, Surface (8``)   (Replaces: 74007156)	10		Immediately	$ 165.96
18	WPW10259868		Element, Surface (6``)   (Replaces: 74007157)	10		Immediately	$ 112.28
19	W10288050		Bowl, Drip (6`` Bsq)   (Replaces: 74004994)	10			$ 54.11
20	W10288050		Bowl, Drip (8`` Bsq)   (Replaces: 74004995)	10			$ 54.11
21	12001676		Receptacle Assy.	10		Immediately	$ 28.45
22	74008761		Spacer, Snap-in	10			$ 7.55
