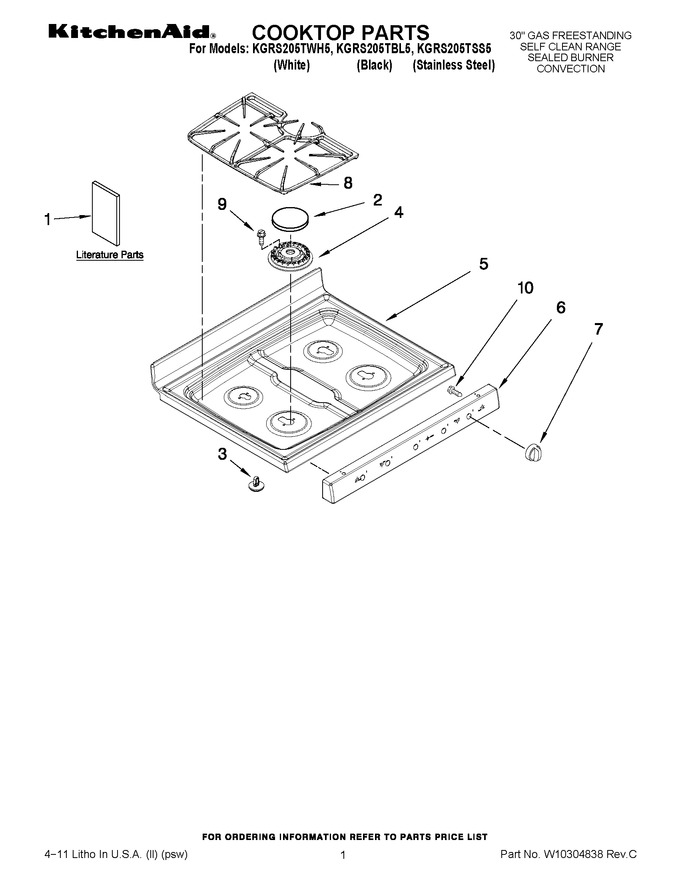

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10281615 | Wiring Diagram |
|
- | |||||
| 1 | W10185364 | Owners Manual |
|
- | |||||
| 1 | W10188242 | Installation Instructions |
|
- | |||||
| 2 | 7504P294-60 | Cap, Burner (ctr) (gray) |
|
$ 62.87 | |||||
| 2 | WP7504P300-60 | Cap, Burner (rf) (black) (Replaces: 7504P300-60) |
|
$ 106.62 | |||||
| 2 | W10168351 | Cap, Burner (rr & Lr) (gray) |
|
- | |||||
| 2 | WP7504P299-60 | Cap, Burner (lf) (black) (Replaces: 7504P299-60) |
|
$ 83.03 | |||||
| 2 | W10168355 | Cap, Burner (rr & Lr) (black) |
|
- | |||||
| 2 | WP7504P298-60 | Cap, Burner (ctr) (black) (Replaces: 7504P298-60) |
|
$ 56.92 | |||||
| 2 | 7504P296-60 | Cap, Burner (rf) (gray) |
|
$ 82.75 | |||||
| 2 | 7504P295-60 | Cap, Burner (lf) (gray) |
|
$ 82.77 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | WPW10406283 | Burner (rr & Lr) (Replaces: W10194076) |
|
$ 66.87 | |||||
| 4 | WPW10406243 | Burner (ctr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 4 | WPW10406797 | Burner (lf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 4 | WPW10406878 | Burner (rf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 5 | W10225509 | Cooktop (black) |
|
- | |||||
| 5 | W10225508 | Cooktop (white) |
|
- | |||||
| 6 | W10168240 | Panel, Manifold (black) |
|
- | |||||
| 6 | W10168678 | Panel, Manifold (stainless Steel) |
|
- | |||||
| 6 | W10168241 | Panel, Manifold (white) |
|
- | |||||
| 7 | WPW10160375 | Knob, Control (s.steel) (Replaces: W10160375) |
|
$ 36.56 | |||||
| 7 | WPW10160372 | Knob, Control (white) (Replaces: W10160372) |
|
$ 29.51 | |||||
| 7 | WPW10160374 | Knob, Control (black) (Replaces: W10160374) |
|
$ 25.36 | |||||
| 8 | W10281406 | Grate, Burner (gray) |
|
- | |||||
| 8 | W10281407 | Grate, Burner (black) |
|
- | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 |
