Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 9761069 Tubing, Burner (rf) Special Order $ 49.98

3 9761070 Tubing, Burner (rr) Special Order $ 52.24

5 9761068 Tubing, Burner (lr) Special Order $ 50.22

7 WP4456816 Valve, Burner Small (2)   (Replaces: 4456816) In-Stock Immediately $ 286.55

8 WP4456817 Valve, Burner Large   (Replaces: 4456817) Special Order $ 286.38

9 WP9756824 Spark Switch & Harness Assembly   (Replaces: 9756824) In-Stock Immediately $ 161.92

10 9761648 Tube, Manifold Special Order $ 66.48

11 9761642 Manifold (cooktop) Special Order $ 165.03

11 9761641 Manifold (tcb) Special Order $ 73.13

12 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

14 8523704 Bolt, Valve (4) Appelez-nous -
18 4453754 Tubing Gds To Manifold Special Order $ 208.86


    View Diagram in Separate Window     Print Icon   Print Part List

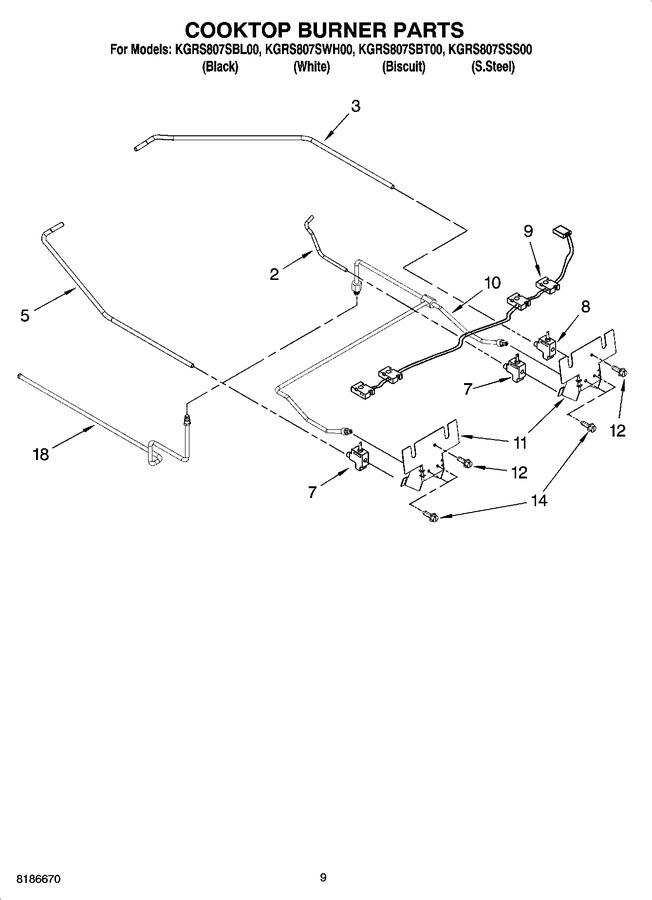

Diagram for KGRS807SBL00
