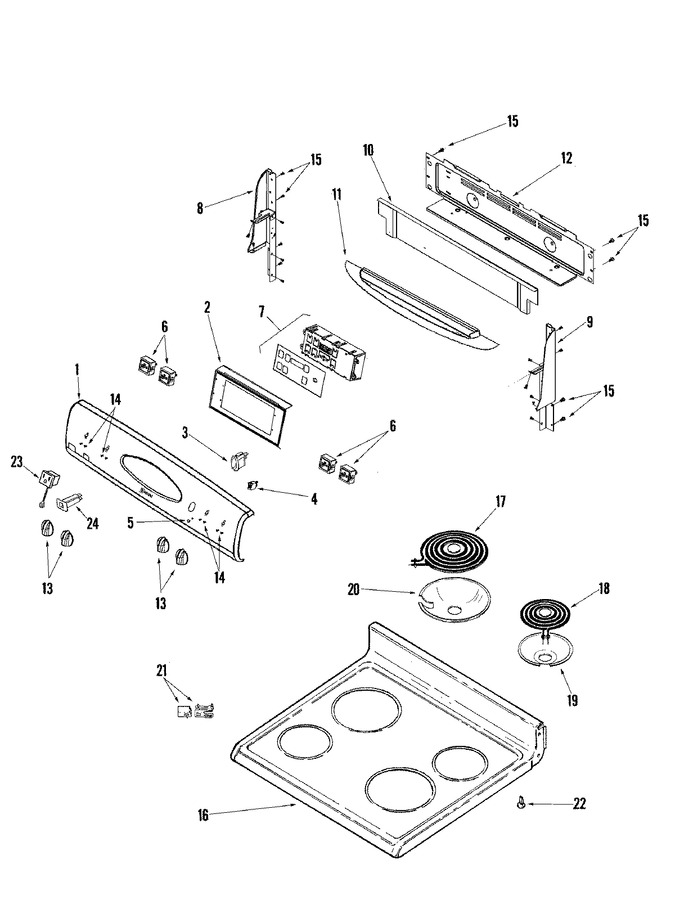

| 1 | 74009334 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | WP74010226 | Switch, Rocker (wht) (Replaces: 74008938) | 10 |
|
$ 86.45 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 7 | WP5701M717-60 | Clock/overlay (wht) (Replaces: 74009211) | 10 |
|
$ 474.66 | ||||
| 8 | 74009077 | End Cap (rt-wht) | 10 |
|
- | ||||
| 9 | 74009079 | End Cap (lt-wht) | 10 |
|
- | ||||
| 10 | 74009444 | Shield, Vent | 10 |
|
- | ||||
| 11 | 74009203 | Shield, Heat Visor (wht) | 10 |
|
- | ||||
| 12 | 74010935 | Cover, Rear Wire | 10 |
|
- | ||||
| 13 | WP74008947 | Knob (wht/chr) (Replaces: 74008947) | 10 |
|
$ 18.70 | ||||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 15 | W11233072 | Screw, (no.8x1/2``pph) (Replaces: 74009268) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 74008737 | Top, Main (wht) | 10 |
|
- | ||||
| 17 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 19 | W10290353RW | Bowl, Drip (6`` Blk) (Replaces: Y04100392) | 10 |
|
Immediately | $ 19.27 | |||
| 20 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 10 |
|
Immediately | $ 15.25 | |||
| 21 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 23 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 23 | 71003069 | Receptacle, Outlet (wht) | 10 |
|
- | ||||
| 24 | 74009322 | Breaker, Circuit (wht) | 10 |
|
$ 63.82 |
