SELECT A DIAGRAM

01 - Cover


02 - Freezer Door

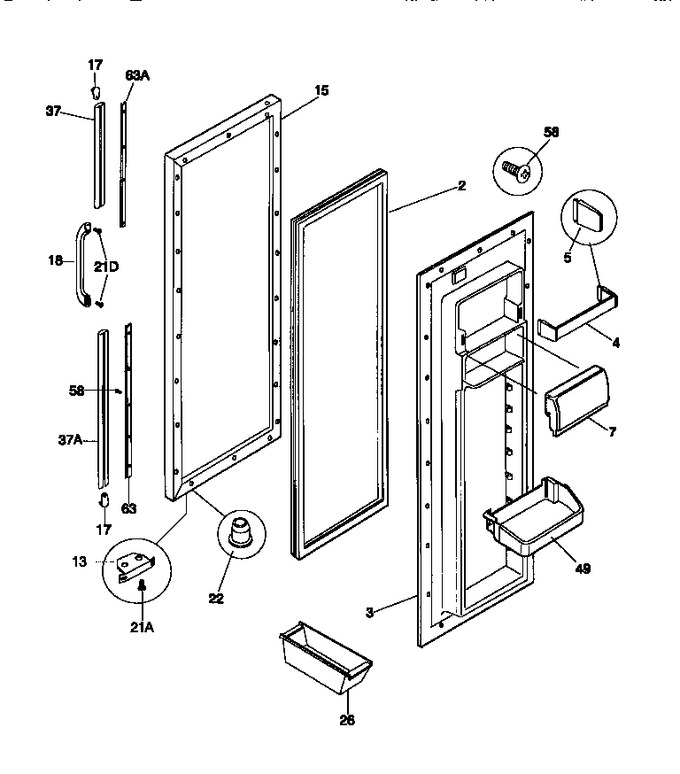

04 - Refrigerator Door


05 - Cabinet


06 - Shelves


07 - Controls


08 - System


09 - Ice Dispenser


10 - Ice Container


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	5303296572		Panel, Inner Door, Refr		Appelez-nous	-
4	218027074		Rack-door		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029913		Door-dairy		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215732201		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215100001		Handle End, White		Appelez-nous	-
18	215339601		Handle-door, White		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215117408		Trim-handle, 15.88``, White, Upper		Appelez-nous	-
49	215003415		Bin-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
*73204	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*73205	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
37A	215117410		Trim-handle, 31.46``, White, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
